48V 100Ah Wall Mount Lithium Battery Home Energy Storage Lithium Battery

Name: 48V 100Ah Wall Mount Lithium Battery Home Energy Storage Lithium Battery
Brand: Shenzhen Bely Energy Technology Co., Ltd.
SKU: BLY-LPF-48V100AHPWBLH
Price: 562.00 USD
Availability: InStock

Brand Name:	BeLYEnergy
Model Number:	BLY-LPF-48V100AHPWBLH
MOQ:	10PCS
Price:	Negotiable
Delivery Time:	2~3weeks for samples; 4~6weeks for mass production
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

MADE IN CHINA

Certification:

CE,ROHS,MSDS,UN38.3

Dimension:

L580x W480 X H181mm Or Customized Size

Material:

Metal Sheet

Weight:

≤50kgs

Cycle Life Time:

More Than 6000 Cycles

Nominal Capacity:

100Ah

Application:

Home Energy Storage

Maximum Discharging Current:

100A

Packaging Details:

UN Carton

Supply Ability:

1000PCS per month

Highlight:

48V Wall Mount Lithium Battery

100Ah Wall Mount Lithium Battery

Home Energy Storage Lithium Battery

Product Description

Wall Mount LiFePO4 Battery for Home Solar Storage--48V100Ah 16S With RS485/CAN Communication With LCD Indicators

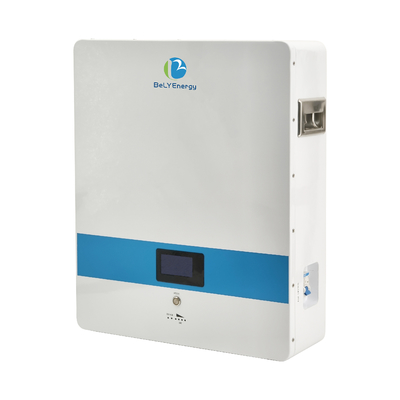

48V 100Ah Wall Mount Lithium Battery Home Energy Storage Lithium Battery 0

BeLY Wall Mount battery utilizes the safe lithium iron phosphate technology working together with inverter and store energy from solar

production to provide power for the home, which can reduce the electricity reliance on the grid. Its compact design and scalable feature

allow for simple installation to suit various home energy needs.

1. General Information

This specification defines the performance of rechargeable LiFePO4 Wall Mount home solar storage battery pack BLY-LFP48V100AH manufactured by SHENZHEN BELY ENERGY TECHNOLOGY CO.,LTD, describes the type, performance, technical characteristics, warning and caution of the battery pack.

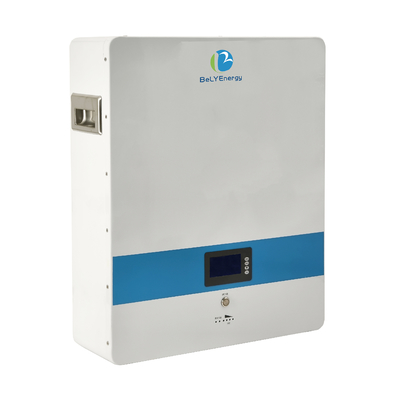

48V 100Ah Wall Mount Lithium Battery Home Energy Storage Lithium Battery 1

2. Battery Specification(@ 25±5℃)

ELECTRICAL SPECIFICATIONS
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Energy	5120Wh
Resistance	≤ 10mΩ
Efficiency	≥ 99%
Self Discharge	＜3% per Month
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	L580x W480x H181mm or customized size
Weight	50KG
Terminal Type	M8 Terminal
Case Material	Metal sheet Case
Enclosure Protection	IP20
Cell Type	New Grade A Automotive Prismatic Cells
Chemistry	LiFePO4
CHARGE SPECIFICATIONS
Recommended Charge Current	≤ 100A
Maximum Charge Current	100A
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current	100A
Peak Discharge Current	105A (5S)
Under Voltage Protection	40V
Over Charge Voltage Protection	58.4V
Short Circuit Protection	400 ≤ 300uS
Cells Balancing Voltage	3.5V (Voltage Difference 20mV between each Cells)
TEMPERATURE SPECIFICATIONS
Discharge Temperature	-20 to 60℃
Charge Temperature	0 to 60℃
Storage Tempearture	-10 to 45℃
COMPLIANCE SPECIFICATIONS
Certifications	CE, ROHS, MSDS, UN38.3, DGM, BQB (Battery), UL(Cells)
Shipping Classification	UN3480, CLASS 9
Package	UN Carton

3.Description of LiFePO4 Battery

Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 6,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.

4. Period of Warranty

The period of warranty is 5 years from the date of shipment. BeLY guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

5. Application Scenario

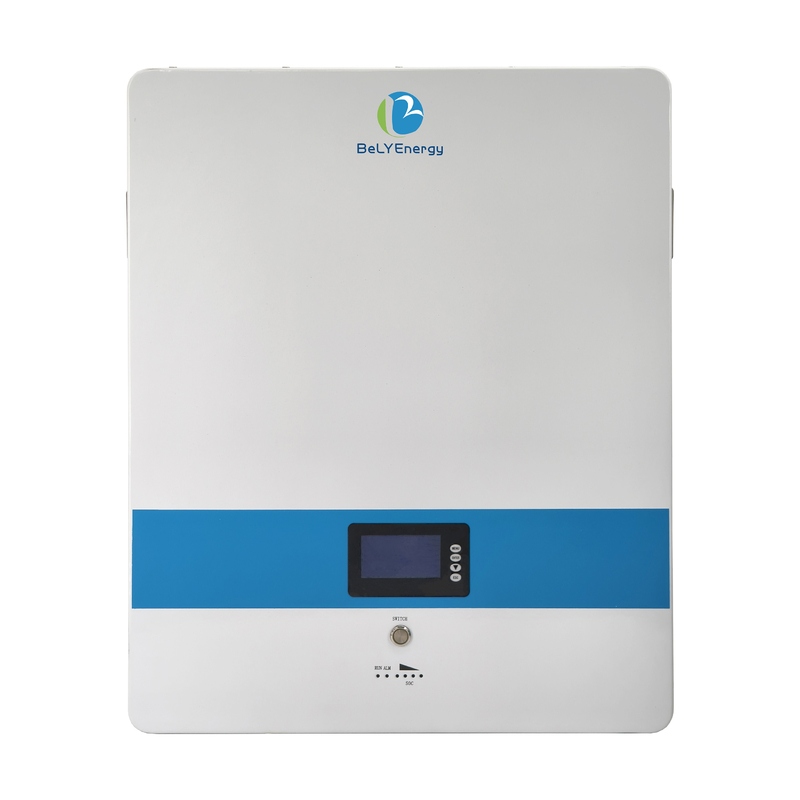

48V 100Ah Wall Mount Lithium Battery Home Energy Storage Lithium Battery 2

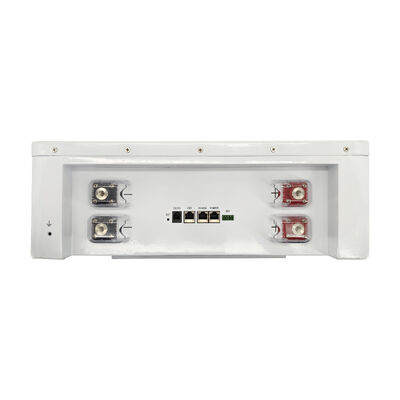

48V 100Ah Wall Mount Lithium Battery Home Energy Storage Lithium Battery 3
