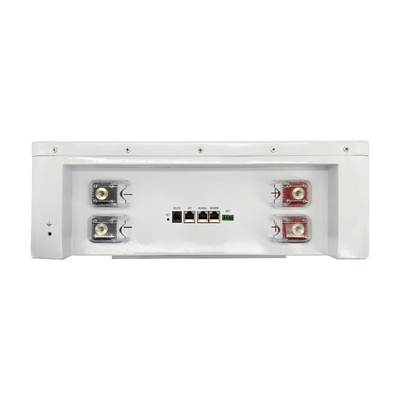

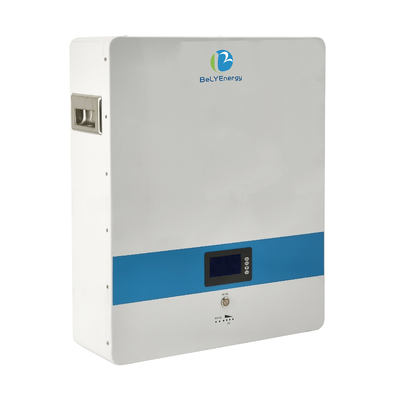

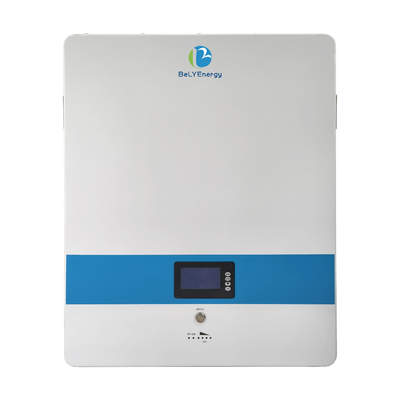

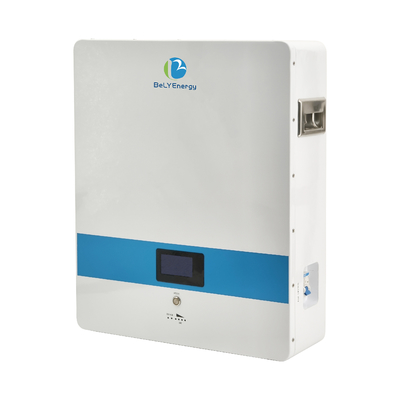

Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage
  • Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage
  • Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage
  • Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage
  • Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage

Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage

Place of Origin MADE IN CHINA
Brand Name BeLYEnergy
Certification CE,ROHS,MSDS,UN38.3
Model Number BLY-LPF-48V100AH-Wall Mount
Product Details
Dimension:
L500x W225 X H495mm Or Customized Size
Material:
Metal Sheet
Weight:
≤50kgs
Cycle Life Time:
More Than 6000 Cycles
Nominal Capacity:
100Ah
Application:
Home Energy Storage
Highlight:

Full Capacity Wall Mount Lithium Battery

,

48V 100Ah Wall Mount Lithium Battery

Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
Negotiable
Packaging Details
UN Carton
Delivery Time
2~3weeks for samples; 4~6weeks for mass production
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1000PCS per month
Product Description

Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage









1. General Information



BeLY Wall Mount battery utilizes the safe lithium iron phosphate technology working together with inverter and store energy from solar

production to provide power for the home, which can reduce the electricity reliance on the grid. Its compact design and scalable feature

allow for simple installation to suit various home energy needs.



     2.Description of LiFePO4 Battery

     Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 6,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.



      3. Battery Specification

ELECTRICAL SPECIFICATIONS
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Resistance ≤ 10mΩ
Efficiency ≥ 99%
Self Discharge 3% per Month
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H) L580x W480x H188mm or customized size
Weight 50KG
Terminal Type M8 Terminal
Case Material Metal sheet Case
Enclosure Protection IP20
Cell Type New Grade A Automotive Prismatic Cells
Chemistry LiFePO4
CHARGE SPECIFICATIONS
Recommended Charge Current ≤ 100A
Maximum Charge Current 100A
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 100A
Peak Discharge Current 105A (5S)
Under Voltage Protection 40V
Over Charge Voltage Protection 58.4V
Short Circuit Protection 400 ≤ 300uS
Cells Balancing Voltage 3.5V (Voltage Difference 20mV between each Cells)
TEMPERATURE SPECIFICATIONS
Discharge Temperature -20 to 60
Charge Temperature 0 to 60
Storage Tempearture -10 to 45
COMPLIANCE SPECIFICATIONS
Certifications CE, ROHS, MSDS, UN38.3, DGM, BQB (Battery), UL(Cells)
Shipping Classification UN3480, CLASS 9
Package UN Carton







      4. Period of Warranty

     Bely guarantees to give a free repair or replacement in cases where cells or the BMS have defects proven to be due to manufacturing process instead of misuse, accidental damage or general wear & tear. In the event of a proven manufacturing defect or battery failure that meets the warranty terms and conditions, we will either repair the battery (usually by replacing an internal component such as a cell or the BMS) or replace the entire battery.



     5. Application Scenario

Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage 0

Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage 1

Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage 2

Wall Mount Lithium Battery 48V 100Ah Full Capacity Long Cycle For Energy Storage 3
