| Place of Origin: | MADE IN CHINA |
| Brand Name: | BeLYEnergy |
| Certification: | CE,ROHS,MSDS,UN38.3 |
| Model Number: | BLY-LPF-M48V100AHSNMP |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | UN Carton |
| Delivery Time: | 2~3weeks for samples; 4~6weeks for mass production |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 1000PCS per month |
| Dimension: | L562x W341 X H250mm Or Customized Size | Material: | Metal Sheet |
|---|---|---|---|
| Cycle Life Time: | More Than 6000 Cycles | Nominal Capacity: | 100Ah |
| Application: | Home Energy Storage | Maximum Discharging Current: | 100A |
| High Light: | ATV Powersports Lithium Battery,SNMP Powersports Lithium Battery,5kwh Golf Cart Lithium Battery |
||

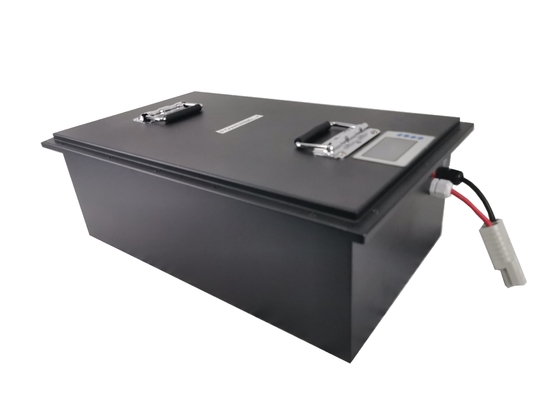

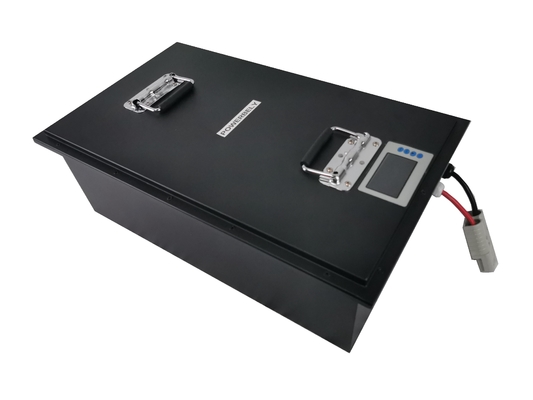

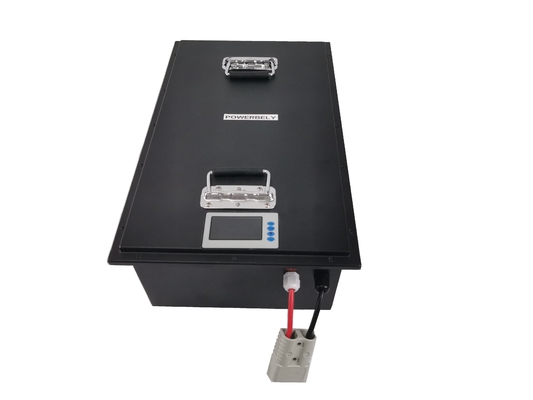

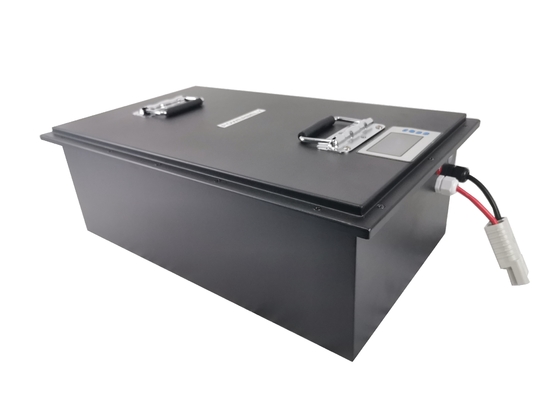

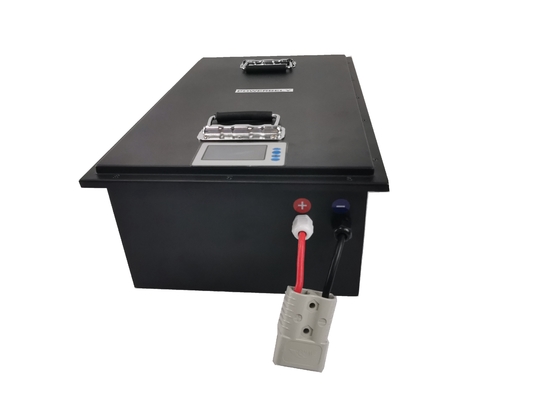

Power sports Lithium Battery 5kwh With SNMP and Display
1. General Information
This specification defines the performance of rechargeable LiFePO4 Powerwall home solar storage battery pack BLY-LFP-M48V100AHSNMP manufactured by SHENZHEN BELY ENERGY TECHNOLOGY CO.,LTD, describes the type, performance, technical characteristics, warning and caution of the battery pack.
2. Battery Specification(@ 25±5℃)
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy | 5120Wh |
| Resistance | ≤ 10mΩ |
| Efficiency | ≥ 99% |
| Self Discharge | ＜3% per Month |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | L562x W341 x H250mm or customized size |
| Weight | 45KG |
| Terminal Type | M8 Terminal |
| Case Material | Metal sheet Case |
| Enclosure Protection | IP65 |
| Cell Type | New Grade A Automotive Prismatic Cells |
| Chemistry | LiFePO4 |
| CHARGE SPECIFICATIONS | |
| Recommended Charge Current | ≤ 50A |
| Maximum Charge Current | 50A |
| DISCHARGE SPECIFICATIONS | |
| Maximum Continuous Discharge Current | 50A |
| Peak Discharge Current | 130A (10S) |
| Under Voltage Protection | 40V |
| Over Charge Voltage Protection | 58.4V |
| Short Circuit Protection | 350A ≤ 300uS |
| Cells Balancing Voltage | 3.5V (Voltage Difference 15mV between each Cells) |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -20 to 60℃ |
| Charge Temperature | 0 to 60℃ |
| Storage Tempearture | -20 to 45℃ |
| COMPLIANCE SPECIFICATIONS | |
| Certifications | CE, ROHS, MSDS, UN38.3, DGM, BQB (Battery), UL(Cells) |
| Shipping Classification | UN3480, CLASS 9 |
| Package | UN Carton |
3.Product performance description
More than 6000 cycle time and 10 years long guarantee time.
More rechargeable time, longer life time, economic and environmental protection.
Light weight and portable.
LiFePO4 material more safe
Inbuilt BMS multiple security protection.
Compact size and stylish design.
4. Period of Warranty
The period of warranty is 5 years from the date of shipment. BeLY guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
5. Application Scenario
