12V 200Ah Lithium Iron Phosphate RV Battery Lithium Golf Trolley Batteries
  • 12V 200Ah Lithium Iron Phosphate RV Battery Lithium Golf Trolley Batteries
  • 12V 200Ah Lithium Iron Phosphate RV Battery Lithium Golf Trolley Batteries

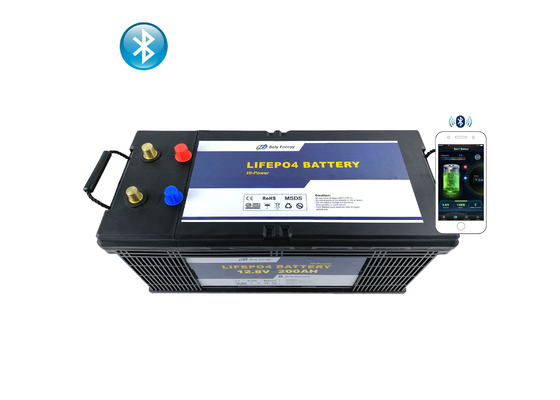

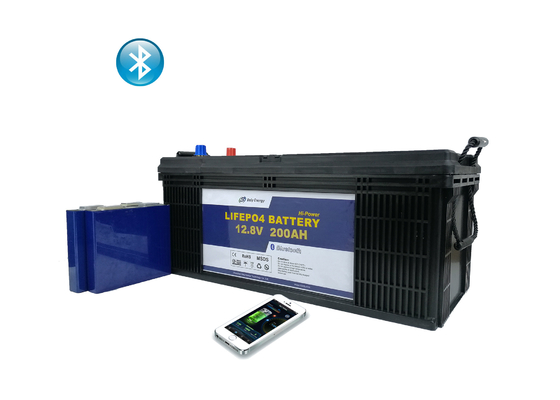

12V 200Ah Lithium Iron Phosphate RV Battery Lithium Golf Trolley Batteries

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V200AHBL
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah/2560Wh
Cycle Life:
≥3000cycles
Weight:
22.5KGS
Dimension:
526mm X 235mm X 217mm/ 237mm
Warranty Time:
2 Years
Color:
Black Or Customized
Oem/odm:
Accepatable
Monitoring:
Bluetooth 4.0 With Smartphone APP
High Light:

200Ah lithium golf trolley batteries

,

12V lithium golf trolley batteries

,

Lithium Iron Phosphate Rv Battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Amazon Hot Item 12V 200Ah Lithium Iron Phosphate Rv Battery With Bluetooth For Golf Cart , Camping Car



Description of LiFePO4 Battery

1. More than 3000 cycles time and 2 years long guarantee time.

2. More rechargeable time, longer life time, economic and environmental protection.

3. Light weight and portable.

4. LIFEPO4 material more safe.

5. Inbuit BMS multiple security protection.

6. APP control monitoring.

Bluetooth Function

LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.



Specification of Lifepo4 Battery 12v 200AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 200Ah/2560Wh
Physical Dimension 526mm x 235mm x 217mm/ 237mm
Weight 22.5KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 80A
Max. Charging Current 150A
Recommended Max Continuous Discharging Current 120A
Max. Continuous Discharging Current 150A (Less than 25 mins)
Peak Discharging Current (≤20 sec.) 200A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Battery Cells Type Prismatic
Connector Copper pillar
Monitoring Bluetooth 4.0 with Smartphone APP
Material ABS(anti-UV)
Protection Class IP65

Smart Built-in BMS

BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.



APPLICATION AREAS

Bluetooth, GPS, wearable device, Power supply, wireless

Camper, Electric scooter, Golf Carts, Power wheels

Remote control cars, boat, aircraft, toys

UPS, Solar, Wind, Mobile generator, Back up power
Solar power bank, Solar LED lighting, Solar street light
E-bike, Golf cart, E-motor, E-tour car, tricycle
Medical devices, equipment and portable equipment



12V 200Ah Lithium Iron Phosphate RV Battery Lithium Golf Trolley Batteries 0

Battery Benefits

Pollution-free

Light weight

High working voltage for single battery cells

With short-circuit production function, safe and reliable

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

One to one replaceable with lead acid battery

Low self-discharge



Install the LiFePO4 battery

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.



Caution:

- Do not store at above 60℃(140℉);

- Do not dispose of the battery in fire or water;

- Do not expose to high temperature, disassemble or short circuit;

- New Battery pack must be fully charged before use.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.



Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
