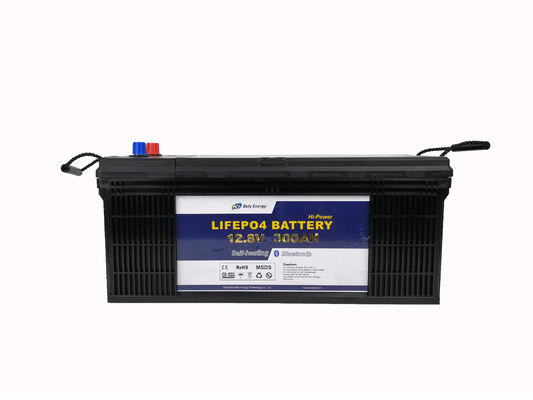

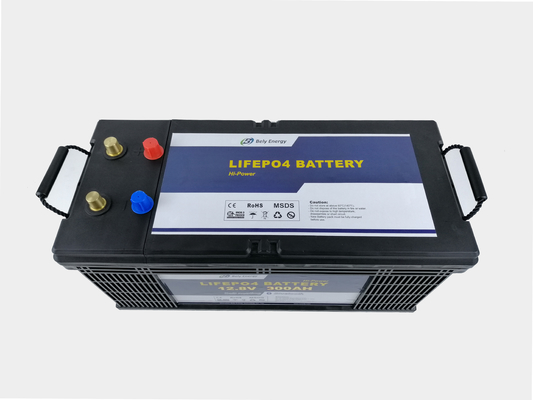

3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery
  • 3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery
  • 3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery

3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery

Place of Origin China
Brand Name bely
Certification CE, MSDS, UN38.3, ROHS
Model Number BLY-LFP12V300AHBLH
Product Details
Type:
LifePO4
Nominal Voltage:
12.8V
Nominal Capacity:
300Ah / 3840Wh
Net Weight:
32.5kgs
Battery Dimension:
526mm X 235mm X 217mm/237mm
IP Class:
IP65
Connector:
Copper Pillar
Material:
ABS(anti-UV)
High Light:

3840Wh Energy Storage Lithium Battery

,

Energy Storage Lithium Battery 12V

,

12v 300ah lifepo4 battery

Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60 days for mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Energy Storage Lithium Battery 12V 300Ah Lifepo4 cell with Bluetooth And Heating For Solar energy system



Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and
offers a higher charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.



Bely 12V 300Ah LiFePO4 battery pack support max contiunous discharge current 150A (Less than 25 mins) and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.

Quick detail of Lifepo4 Battery

  • Capacity:12.8V 300Ah bluetooth and Heating Lithium Battery
  • Battery Type: LiFePO4
  • Cycle life: ≥3000@90% DOD 25
  • Nominal Capacity: 12.8Ah
  • Working Voltage Range: 10-14.6V
  • End of Charge Voltage: 14.4-14.6V
  • Optional: Bluetooth Monitoring APP
  • No memory effect
  • High energy density
  • Pollution-free
  • High discharge rate
  • Light weight
  • High working voltage for single battery cells
  • Capacity, resistance, Voltage, platform time consistency is good
  • With short-circuit production function, safe and reliable
  • Good consistency, low self discharge
  • Primatic Cells UL 1642 & UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS.

Warranty time: 2 Years

Warranty time prolong from 2 years to 5 years: Price increase 20%

Warranty time prolong from 2 years to 7 years: Price increase 35%





Battery Specification



Specification

Parameter

Nominal Voltage

12.8V

Nominal Capacity

300Ah/1280Wh

Size/mm

526mm x 235mm x 217mm/237mm

Net Weight

32.5kgs

Working Voltage Range

10-14.6V

Charging mode

CCCV/IU
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 80A
Max. Charging Current 150A
Recommended Max Continuous Discharging Current 120A
Max. Continuous Discharging Current 150(Less than 25 mins)
Peak Discharging Current (≤20 sec.) 150A
BMS (Battery Management System) Integrated & inbuilt in the battery
Application / Interconnection Parallel Connection or Series Connection Possible
(Maximum 4 Units)
Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Terminal Protruding Copper Pillar
Internal Impedance ≤20mΩ
Life Time Designed@+25℃ 10 years
Protection Class IP65



Bely LiFePO4 Battery develop tailored battery solutions for each market.



Bluetooth Function

LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.

Heating fuction

Charging Heating When Temperture <-1℃ Even to -30℃ Heated to 5℃ and Charge Well (Temperature can be preseted and customized)

Introduce

This specification defines the performance of rechargeable LiFePO4 battery pack BLY-LFP-12V 100AHBLH manufactured by Shenzhen Bely Energy Technology Co., Ltd. describes the type, performance, technical characteristics, warning and caution of the battery pack. The battery pack supports Bluetooth communication function. Through Android and IOS APP, the battery status and information can be read. Especially due to the Android system’s openness, different smartphone manufacturer will have their own different Bluetooth hardware version and customized feature Android systems. So the APP may not work well on some smartphones (with Android system) due to the compatible issue. It is necessary for the customer to confirm whether the phone is compatible with the APP.



3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery 0

Manual measurement will have an error of about 2-3cm



3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery 11. General Information



1.1 EASY REPLACEMENT THE EXISTING BATTERY



1.2 APPLICATION AREAS

The areas of application of this battery are specifically for the stationary or mobile area.



1.3 BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.



1.4 PERFORMANCE / EFFICIENCY

A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.

2. Battery Management System (BMS)



The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.

- Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.



3. Application

  • Motohomes, caravans and RV
  • Photovoltaics, solar systems and renewable energies
  • High performance traction/storage battery
  • Fishing, electric boat motors and sonar
  • Mobile power supply, camping and leisure
  • Emergency power supply/UPS

3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery 2



4. Important instructions



Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



Our Services & Strength

With reliable test equipments, batteries parameter and specification can satisfy the customers' requirements and meet the market standards well. Quality can be guaranteed and assured for shipments.
3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery 3



Certificates approve qualified production and good quality products

3840Wh Energy Storage Lithium Battery 12V 300ah Lifepo4 Battery 4



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?
A. Samples neeeds 7-10 days, mass production time needs 5-7 weeks, it depends on order quantity.


Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.


Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.


Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.


Q8. How about warranty?
A:2 year warranty. Enable to prolong.
