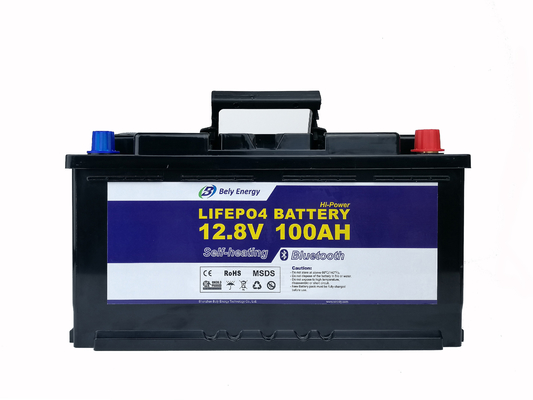

12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery
  • 12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery
  • 12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery

12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V100AHBLH
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah/1280Wh
Weight:
12KGS
Dimension:
355mm X 175mm X 190mm
Monitoring:
Bluetooth 4.0 With Smartphone APP
High Light:

100Ah Lithium Trolling Motor Battery

,

12V Lithium Trolling Motor Battery

,

1280Wh caravan and camping battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

12V 100Ah RV Lithium Battery Battery 100Ah li ion battery With Bluetooth Heating For Scooter / Electric tricycle

Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and
offers a higher charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.



Bely 12V 100Ah LiFePO4 battery pack support max contiunous discharge current 150A (Less than 25 mins) and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.



Bluetooth Function

LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.

Heating Function

Charging Heating When Temperture <-1℃ Even to -30℃
Heated to 5℃ and Charge Well
(Temperature can be preseted and customized)

12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery 0

Specification of Lifepo4 Battery 12v 100AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 100Ah/1280Wh
Physical Dimension 355mm x 175mm x 190mm
Weight 12KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 50A
Max. Charging Current 80A
Max. Continuous Discharging Current 100A
Peak Discharging Current (≤20 sec.) 150A
Others

Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Battery Cells Type Prismatic
Connector Copper pillar
Material ABS(anti-UV)
Color Blak or customized
  Protection Class

IP65



Information

BMS

BATTERY MANAGEMENT SYSTEM

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.

EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.

APPLICATION AREAS

The areas of application of this battery are specifically for the stationary or mobile area. Lithium batteries are diverse. Especially Mobile homes, solar, e-boats, electric scooters, golf carts or electronic-mobiles / wheelchairs and cleaning machines will always be more often equipped with it.

BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

PERFORMANCE / EFFICIENCY

A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.



Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

Hign max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge



APPLICATION AREAS



Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS



12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery 1

LiFePO4 Battery Performance and Test Conditions



1. Standard test conditions

Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.



2. Standard Charge/Discharge

Standard Charge: 0.2C

Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.

Standard Discharge: 0.2C

Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C



Packaging & Delivery

Packaging Details 1pcs/carton box

Port: Shenzhen (Yantian/Shekou/Chiwan) or Hong Kong

12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery 2

Strong and protective package way will protect each battery well.

Base on different transportation way, the battery package will be customized.
Different transportation way will be selected according to customers' requirements.
12V 100Ah Lithium Trolling Motor Battery Power Tools Caravan And Camping Battery 3


FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty. Enable to prolong.
