Golf Cart Lithium Battery
>
|
| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3,ROHS |
| Model Number | BLY-LFP12V150AHL |

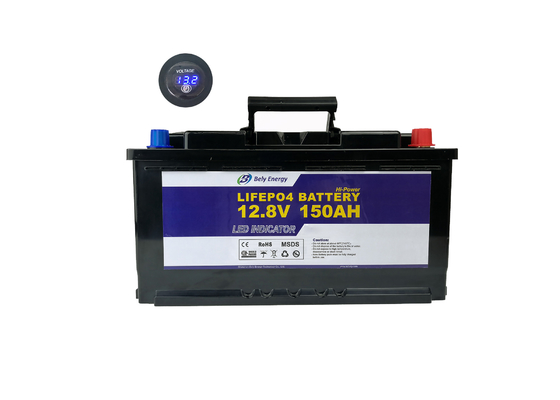

Customized LiFePo4 Battery 12V 150Ah Golf Cart Lithium Battery With LED Display For consumer electronics / RV
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
Description of LiFePO4 Battery

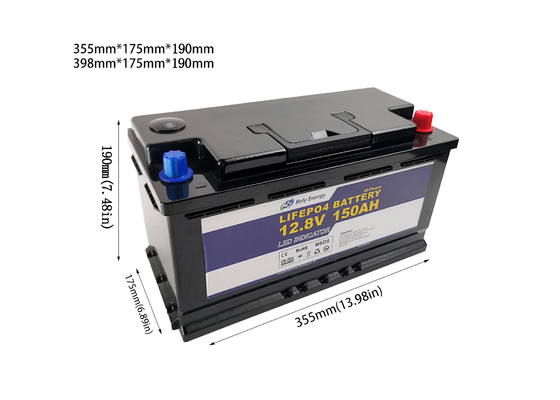

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 355mm x 175mm x 190mm.
2. More than 3000@90% DOD 25℃.
3. High discharging current capacity, working well with most of inverters in the market.
4. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.
5. Series & Parallel connections are available.
Bely 12V 200Ah LiFePO4 battery pack support max contiunous discharge current 150A (Less than 25 mins) and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.
Specification
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 150Ah/1920Wh | |
| Physical | Dimension | 355mm x 175mm x 190mm |
| Weight | 17KGS | |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V | |
| Recommended Charging Current | 80A | |
| Max. Charging Current | 150A | |
| Recommended Max. Continuous Discharging current | 120A | |
| Max. Continuous Discharging Current | 150A (Less than 25 mins) | |
| Peak Discharging Current (≤20 sec.) | 200A | |
| Others |
Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Cycle Life | ≥3000Cycles | |
| Internal Impedance | ≤20mΩ | |
| Protection Class | IP65 | |
| Battery Cells Type | Prismatic | |
| Connector | Copper pillar | |
| Material | ABS(anti-UV) | |
| Color | Blak or customized | |
Battery Management System(BMS)
The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.
- Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
APPLICATION Of 24V LiFePO4 Battery
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active so that it always works maximum.
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty. Enable to prolong.
