Lithium Trolling Motor Battery
>
|
| Place of Origin | China |
| Brand Name | bely |
| Certification | CE, MSDS, UN38.3, ROHS |
| Model Number | BLY-LFP12V300AHL |

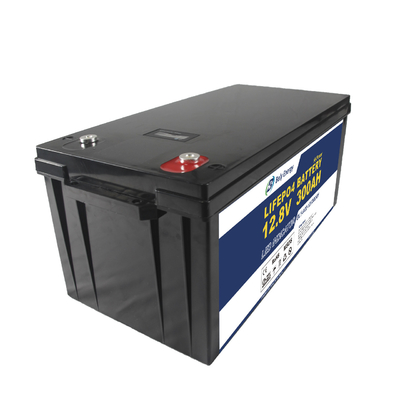

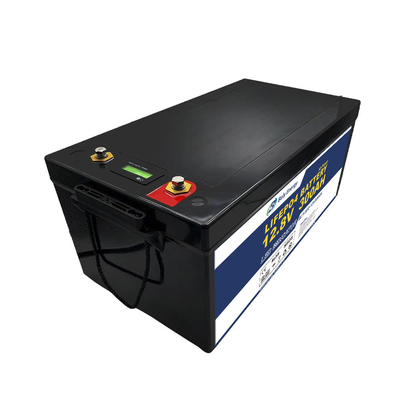

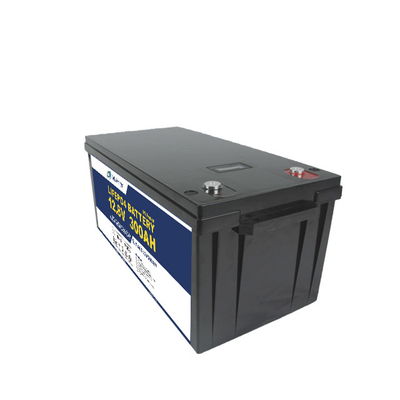

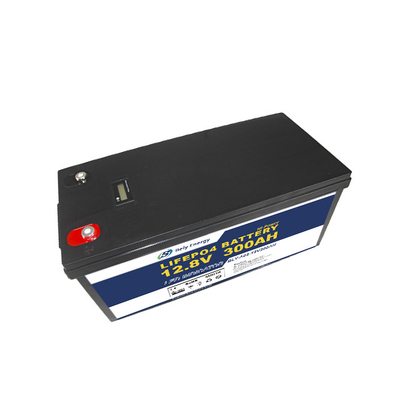

300Ah Power Wall 12V 300Ah Energy Storage Lithium Battery With LED Indictor Monitoring for Communication station
| Name | 12V 300Ah LiFePO4 Battery | Application | Golf Cart, UPS, Street Light, Solar Panel, Yacht/Marine, RV, E-bike, Robot, Camping Car, ect. |
| Style | Energe Storage Lithium Battery | Color | Black and Customized |
| OEM/ODM | Accepatable | Battery Cells Type | Prismatic |
| Prismatic cells UL1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS | |||
General Information
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary
BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
Manual measurement will have an error of about 2-3cm
1. Battery Specification
| Specification |
Parameter |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
300Ah/2560Wh |
|
Size/mm |
526mm x 235mm x 237mm |
|
Net Weight |
32.5kgs |
|
Working Voltage Range |
10-14.6V |
|
Charging mode |
CCCV/IU |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 80A |
| Max. Charging Current | 150A |
| Recommended Max. Continuous Discharging Current | 120A |
| Max. Continuous Discharging Current | 150A (Less than 25 mins) |
| Peak Discharging Current (≤20 sec.) | 200A |
| BMS (Battery Management System) | Integrated & inbuilt in the battery |
| Monitor | LED Display |
| Application / Interconnection | Parallel Connection |
| Charging Temperature Range | 0～55℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -20~60℃ |
| Terminal | Protruding Copper Pillar |
| Internal Impedance | ≤20mΩ |
| Series & Parallel connections | Available |
| Life Time Designed@+25℃ | 10 years |
| Protection Class | IP65 |
| Warranty |
2 years Warranty time prolong from 2 years to 5 years: Price increase 20% Warranty time prolong from 2 years to 7 years: Price increase 35% |
2. Application
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
3. Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active so that it always works maximum
4. Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
5. Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
