LED Light Lithium Battery
>
|
| Place of Origin | China |
| Brand Name | bely |
| Certification | CE, MSDS, UN38.3, ROHS |
| Model Number | BLY-LFP12V50AHL |

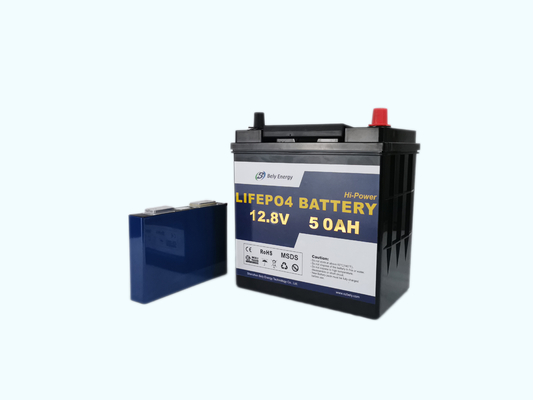

Bely Customized 12V LiFePo4 Battery 12V 50Ah LED Lithium Battery for Robot / emergency light
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
| Name | 12V 50Ah LiFePO4 Battery | Application | Golf Cart, UPS, Solar Panel, Yacht/Marine, RV, E-bike, Robot, Camping Car, ect. |
| Style | 12V LifePO4 Battery | Color | Black and Customized |
| OEM/ODM | Accepatable | Battery Cells Type | Prismatic |
1. Very suitable for Solar Panel, E-bike with battery size: 198mm x 128mm x 200mm(220mm)
2. Prismatic cells UL1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS.
3. Series & Parallel connections are available.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
Battery Benefits
High discharging current capacity, working well with most of inverters in the market.
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 3000 times @ 90% DOD
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge

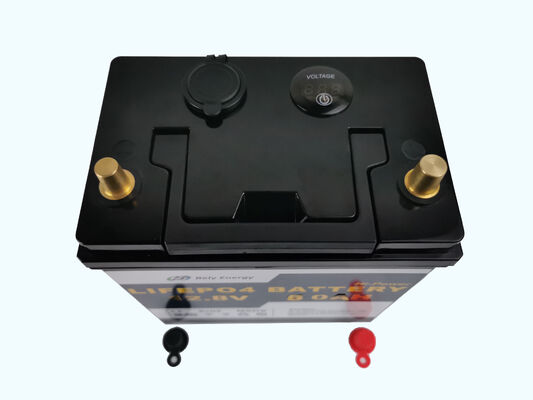

Equipped with cigarette lighyer function.
General Information
BMS
BATTERY MANAGEMENT SYSTEM
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary
BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
Battery Specification
| Specification |
Parameter |
Remarks |
|
Nominal Voltage |
12.8V | |
|
Nominal Capacity |
50Ah/640Wh | |
|
Size/mm |
198mm x 128mm x 200mm(220mm) | |
|
Net Weight |
6kgs | |
|
Working Voltage Range |
10-14.6V | |
|
Charging mode |
CCCV/IU | |
| End of Charge Voltage | 14.4~14.6V | |
| Recommended Charging Current | 30A | |
| Max. Charging Current | 50A | |
| Max. Continuous Discharging Current | 50A | |
| BMS (Battery Management System) | Integrated & inbuilt in the battery | |
| Application / Interconnection | Parallel Connection | |
| Charging Temperature Range | 0～55℃ | |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Terminal | Protruding Copper Pillar | |
| Internal Impedance | ≤20mΩ | |
| Life Time Designed@+25℃ | 10 years | |
| Protection Class | IP65 |
Application
1. Back-up System and UPS
2. Energy Storage
3. Other Applications
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Packing&Shipping
Strong and protective package way will protect each battery well.
Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active so that it always works maximum
FAQ:
Q1. What is the biggest difference between your battery and other suppliers:
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 2 years warranty. Enable to prolong.
Q4. Is this LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
