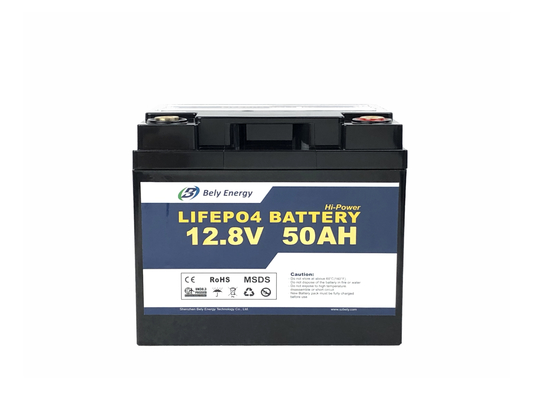

Robot E Bike 12V 50Ah Lithium Battery Low Temperature
  • Robot E Bike 12V 50Ah Lithium Battery Low Temperature
  • Robot E Bike 12V 50Ah Lithium Battery Low Temperature

Robot E Bike 12V 50Ah Lithium Battery Low Temperature

Place of Origin China
Brand Name bely
Certification CE, MSDS, UN38.3, ROHS
Model Number BLY-A01-12V50AH
Product Details
Type:
LifePO4
Nominal Voltage:
12.8V
Nominal Capacity:
50Ah / 640Wh
Cycle Life:
≥3000 @ 90% DOD 25 ℃
Net Weight:
Around 7.5kgs
Battery Dimension:
198mm(L)*166mm(W)*170mm(H)
IP Class:
IP65
Material:
ABS(anti-UV)
High Light:

E Bike lithium battery low temperature

,

12V 50Ah lithium battery low temperature

,

cold temperature lithium ion battery

Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60 days for mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Used For Solar System 12V 50Ah Low Temperature Lithium Batter 12V LiFePo4 Battery For Robot / Street Light



Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and
offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.



Name  12V 50Ah LiFePO4 Battery  Application Golf Cart, UPS, Street Light, Solar Panel, Yacht/Marine, RV, E-bike, Robot, Camping Car, ect.
Style 12V LifePO4 Battery Color Black and Customized
OEM/ODM Accepatable Battery Cells Type Prismatic



The utility model provides a countersunk head type battery terminal, reasonable structure, suitable for terminal built-in battery structure, effectively avoid the short circuit of the positive and negative extremons of the battery, avoid the positive and negative extremons wear out the battery shell when the battery is stacked in the battery box, and convenient stacking.



1. Very suitable for Solar Panel, E-bike  with battery size: 198mm x 166mm x 170mm

2. Series & Parallel connections are available.



Battery Benefits



  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
  • High power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity wider temperature range: -20℃~60℃.
  • Long cycle life: offers up to 20 times longer cycle life and 5 times longer/calendar life the lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
  • Lighter weight: About 40% of the weight of a comparable lead acid battery. A “dron in”replacement for lead acid batteries.
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
  • Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.
  • Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
  • Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
  • Higher discharge rate, faster charging and discharging When there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
  • Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
  • High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
  • Cycle durability for a single cell is 3000 cycles 900% DOD, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Robot E Bike 12V 50Ah Lithium Battery Low Temperature 0

Robot E Bike 12V 50Ah Lithium Battery Low Temperature 1



Battery Specification



Specification

Parameter

Remarks

Nominal Voltage

12.8V

Nominal Capacity

50Ah/640Wh

Size/mm

198mm x 166mm x 170mm

Net Weight

7.5kgs

Working Voltage Range

10-14.6V

Charging mode

CCCV/IU
End of Charge Voltage 14.4~14.6V
Charging Current 40A
Discharging Current 60A
Equalizing Current(A) 50A
BMS (Battery Management System) Integrated & inbuilt in the battery
Application / Interconnection Parallel Connection
Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Terminal Protruding Copper Pillar
Internal Impedance ≤20mΩ
Life Time Designed@+25℃ 10 years
Protection Class IP65



General Information

BMS

BATTERY MANAGEMENT SYSTEM

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.

Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.

EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.

BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

PERFORMANCE / EFFICIENCY

A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.





Application



Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS

Robot E Bike 12V 50Ah Lithium Battery Low Temperature 2



Storage and transportation



The battery must be packed and protected well during transport.

The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).

Never lift the battery by the terminals, only by the handles.

The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.

The battery should be charged every three months to keep it active so that it always works maximum



Peaking And Delivery

Robot E Bike 12V 50Ah Lithium Battery Low Temperature 3

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



LiFePO4 Battery Performance and Test Conditions



 Standard test conditions

Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.



Standard Charge/Discharge

Standard Charge: 0.2C

Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.

Standard Discharge: 0.2C

Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C



FAQ

Q1. What is the biggest difference between your battery and other suppliers:

A: Safest with longer lifespan.



Q2. How about your LiFePO4 Battery delivery time?

A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q3: How about your warranty?

A: 2 years warranty. enable to prolong



Q4. Is this LiFePO4 Battery safe?

A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
