Yachit 50Ah Lithium Ion Battery Pack 12V LiFePo4 Battery With LED Indictor
  • Yachit 50Ah Lithium Ion Battery Pack 12V LiFePo4 Battery With LED Indictor
  • Yachit 50Ah Lithium Ion Battery Pack 12V LiFePo4 Battery With LED Indictor

Yachit 50Ah Lithium Ion Battery Pack 12V LiFePo4 Battery With LED Indictor

Place of Origin China
Brand Name bely
Certification CE, MSDS, UN38.3, ROHS
Model Number BLY-LFP12V50AHL
Product Details
Type:
LifePO4
Nominal Voltage:
12.8V
Nominal Capacity:
50Ah / 640Wh
Cycle Life:
≥3000 @ 90% DOD 25 ℃
Warranty:
2 Years
Net Weight:
6kgs
Battery Dimension:
198mm X 128mm X 200mm(220mm)
IP Class:
IP65
Connector:
Copper Pillar
Material:
ABS(anti-UV)
High Light:

Yachit 50Ah Lithium Ion Battery Pack

,

Yachit 50Ah Lithium Ion Battery Pack 12V

,

50Ah Yachit Lithium Ion Battery Pack

Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60 days for mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Bely 12V 50Ah lithium ion battery pack 12V LiFePo4 Battery with LED Indictor monitoring for Yachit / medical / Toys



Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and
offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.



Name  12V 50Ah LiFePO4 Battery  Application Golf Cart, UPS, Street Light, Solar Panel, Yacht/Marine, RV, E-bike, Robot, Camping Car, ect.
Style 12V LifePO4 Battery Color Black and Customized
OEM/ODM Accepatable Battery Cells Type Prismatic



1. Very suitable for Solar Panel, E-bike  with battery size: 198mm x 128mm x 200mm(220mm)

2. Prismatic cells UL1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS.

3. Series & Parallel connections are available.



Battery Benefits

High discharging current capacity, working well with most of inverters in the market.

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High cycles life time more than 3000 times @ 90% DOD

Hign max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge

Equipped with cigarette lighyer function.



General Information

 BMS

BATTERY MANAGEMENT SYSTEM

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.

EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary

BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

PERFORMANCE / EFFICIENCY

A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.

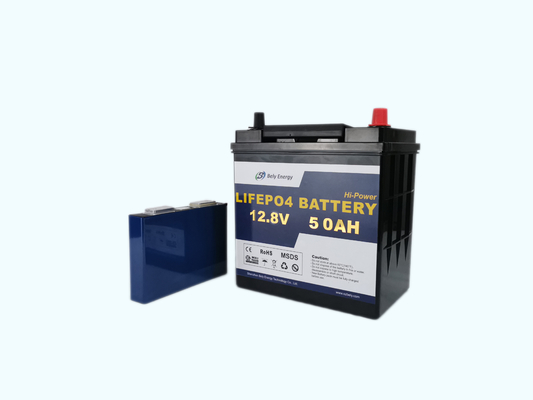

Yachit 50Ah Lithium Ion Battery Pack 12V LiFePo4 Battery With LED Indictor 0

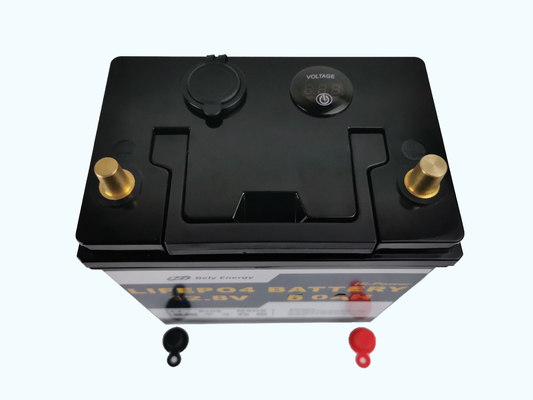

Yachit 50Ah Lithium Ion Battery Pack 12V LiFePo4 Battery With LED Indictor 1



1. Battery Specification



Specification

Parameter

Remarks

Nominal Voltage

12.8V

Nominal Capacity

50Ah/640Wh

Size/mm

198mm x 128mm x 200mm(220mm)

Net Weight

6kgs

Working Voltage Range

10-14.6V

Charging mode

CCCV/IU
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 30A
Max. Charging Current 50A
Max. Continuous Discharging Current 50A
BMS (Battery Management System) Integrated & inbuilt in the battery
Application / Interconnection Parallel Connection
Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Terminal Protruding Copper Pillar
Internal Impedance ≤20mΩ
Life Time Designed@+25℃ 10 years
Protection Class IP65



2. Application

1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.

2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.

3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.



The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc

Yachit 50Ah Lithium Ion Battery Pack 12V LiFePo4 Battery With LED Indictor 2





FAQ:

Q1. What is the biggest difference between your battery and other suppliers:

A: Safest with longer lifespan.

Q2. How about your LiFePO4 Battery delivery time?

A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3: How about your warranty?

A: 2 years warranty. Enable to prolong.

Q4. Is this LiFePO4 Battery safe?

A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
