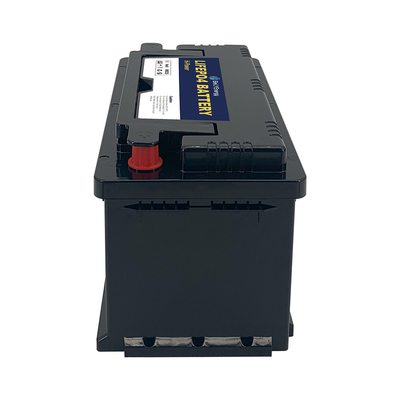

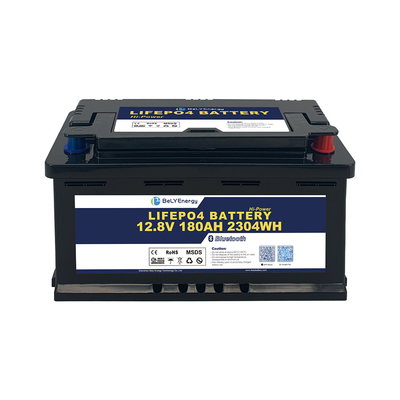

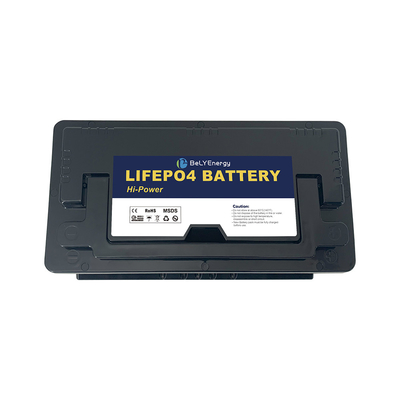

Bely Energy Latest Design 12V 180AH Batteries For Bluetooth For UPS Energy Storage Base Station RV
  • Bely Energy Latest Design 12V 180AH  Batteries For Bluetooth For UPS Energy Storage Base Station RV
  • Bely Energy Latest Design 12V 180AH  Batteries For Bluetooth For UPS Energy Storage Base Station RV
  • Bely Energy Latest Design 12V 180AH  Batteries For Bluetooth For UPS Energy Storage Base Station RV
  • Bely Energy Latest Design 12V 180AH  Batteries For Bluetooth For UPS Energy Storage Base Station RV

Bely Energy Latest Design 12V 180AH Batteries For Bluetooth For UPS Energy Storage Base Station RV

Place of Origin Guangdong, China
Brand Name BELY
Certification UL, CE, UN38.3, ROHS, MSDS
Model Number LFP-12V180AHBL
Product Details
Nominal Voltage(V):
12.8
Nominal Capacity(Ah):
180
Energy (Wh):
2304
Dimension(mm):
355*175*190
Weight(Kg):
18.5
Cycle Life:
≥5000@25°C
Internal Impedance(mΩ):
≤10
Life Time @+25℃ (Years):
10
Protection Class:
IP65
High Light:

lifepo4 battery 12v 200ah

,

EV 12v lifepo4 battery

Payment & Shipping Terms
Minimum Order Quantity
50
Price
usd540/pcs
Packaging Details
UN carton
Delivery Time
30days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
1000pcs/month
Product Description

Description of LiFePO4 Battery

1. More than 5000 cycles time and 10 years long guarantee time.

2. More rechargeable time, longer life time, economic and environmental protection.

3. Light weight and portable.

4. LIFEPO4 material more safe.

5. Inbuit BMS multiple security protection.



Specification of Lifepo4 Battery 12v 180AH

Specification Parameter Remarks
Nominal Voltage 12.8V
Capacity 180Ah/2304Wh

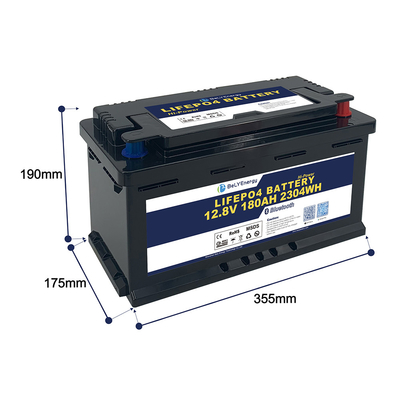

Physical Dimension 355mm x 175mm x 190mm
Weight 18.5KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 100A
Max. Charging Current 200A
Max. Continuous Discharging Current 200A
Peak Discharging Current (≤10 sec.) 260-A
Others Charging Temperature Range 0~60℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -10~45℃
Cycle Life ≥5000Cycles
Internal Impedance ≤10mΩ
Color Black or customized
Battery Cells Type Prismatic
Connector Copper pillar
Charging mode CCCV/IU
Life Time Designed@+25℃ 10 Years
Protection Class IP65



Bluetooth Function

LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.



Self-heated Function

To relieve winter range anxiety in some freezing environment, the BMS can bring with self-heating function. Resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥10°C. Can improve battery charge / discharge performance.



Battery Management System(BMS)

Passive balancing (active balance optional ), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. Besides, Bluetooth function for option that enables to monitor battery status, such as, voltage, capacity and so on.



Application of LiFePO4 Battery

The areas of application of this battery are specifically for the stationary or mobile area. Lithium batteries are diverse. Especially Mobile homes, solar, e-boats, electric scooters, golf carts or electronic-mobiles / wheelchairs and cleaning machines will always be more often equipped with it.



Bely Energy Latest Design 12V 180AH  Batteries For Bluetooth For UPS Energy Storage Base Station RV 0

Battery Benefits

Long cycle life

No memory effect

High energy density

High discharge rate

Light weight

High working voltage for single battery cells

Capacity, resistance, Voltage, platform time consistency is good

With short-circuit protection function, safe and reliable

Good consistency, low self discharge



Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



Storage and transportation

The battery must be packed and protected well during transport.

The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).

Never lift the battery by the terminals, only by the handles.

The battery should be stored in temperatures from -10℃ to +45℃. During transport, the battery should be about 50-60% charged.

The battery should be charged every three months to keep it active so that it always works maximum.



Warning & Tips

1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;

2. When the battery run out of power, please charge it within 15 days;

3. Please use the original or recommended charger for this battery;

4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;

5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.

6. Please far away from children or pets.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 3 years warranty.
