Deep Cycle Lithium Battery
>
|
| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3,ROHS |
| Model Number | BLY-LFP12V120AH |

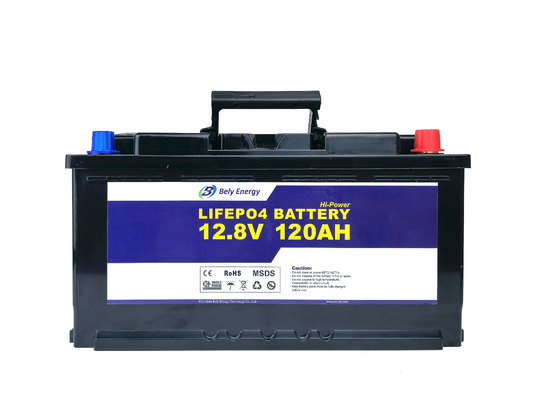

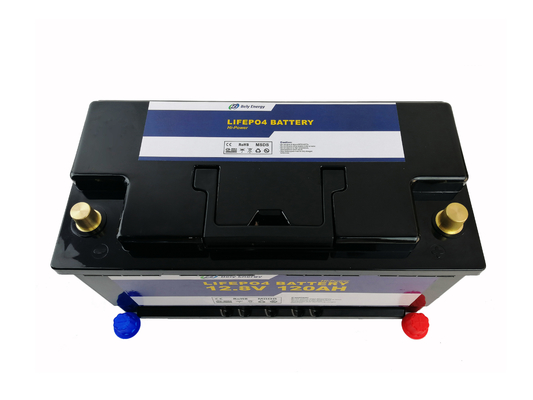

2 Years Warranty 12v 120Ah Lithium Iron Phosphate Deep Cycle Battery For Leisure , Communication Station , Golf Carts
Description of LiFePO4 Battery
1. More than 3000 cycles time and 2 years long guarantee time.
2. More rechargeable time, longer life time, economic and environmental protection.
3. Light weight and portable.
4. LIFEPO4 material more safe.
5. Inbuit BMS multiple security protection.
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.
Long service life
Lithium rechargeable battery cycles more than 3000 times,which is more than 8 times comparing with Lead-acid batteries(usually only last for 300-400 cycles).
Specification of Lifepo4 Battery 12v 120AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 120Ah/1536Wh | |
| Physical | Dimension | 355mm x 175mm x 190mm |
| Weight | 14KGS | |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V | |
| Recommended Charging Current | 60A | |
| Max. Charging Current | 100A | |
| Max. Continuous Discharging Current | 100A | |
| Peak Discharging Current (≤20 sec.) | 150A | |
| Others | Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Cycle Life | ≥3000Cycles | |
| Internal Impedance | ≤20mΩ | |
| Connector | Copper pillar | |
| Protection Class | IP65 | |
| Life Time Designed@+25℃ | 10 Years | |
| Battery Cells Type | Prismatic | |
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
Application of LiFePO4 Battery
Digital / CCTV cameras and portable TV
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
Warning & Tips
1. Do not throw battery into water or make it wet;
2. Keep the battery away from heat source(like fire or heater);
3. Do not throw the battery into fire or heat the battery;
4. Forbid to hammer to trample the battery;
5. Forbid disassembling the battery in anyway.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty.
