Robot Camping Car 12V LiFePo4 Battery 12v 80ah Deep Cycle Battery
  • Robot Camping Car 12V LiFePo4 Battery 12v 80ah Deep Cycle Battery
  • Robot Camping Car 12V LiFePo4 Battery 12v 80ah Deep Cycle Battery

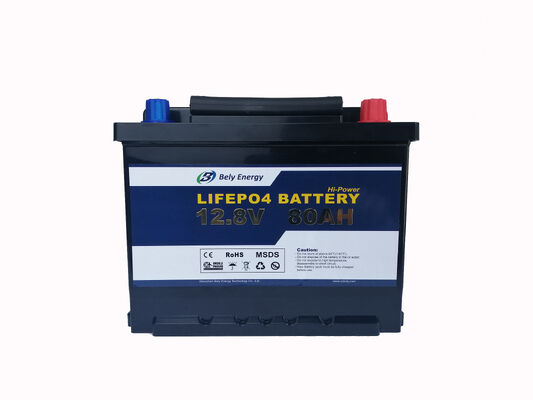

Robot Camping Car 12V LiFePo4 Battery 12v 80ah Deep Cycle Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V80AH
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
80Ah/1024Wh
Cycle Life:
≥3000cycles
BMS:
Integrated & Inbuilt In The Battery
Oem/odm:
Accepatable
Warranty Time:
2 Years
Dimension:
244mm X 176mm X 190mm
Weight:
10KGS
Material:
ABS(anti-UV)
High Light:

Robot Camping Car 12V80AH bely battery

,

Robot 12V bely battery

,

12v 80ah Camping Car bely battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Deep Cycle LiFePO4 Lithium Battery 12V 80AH For Robot , Camping Car , Home Storage



Description of LiFePO4 Battery

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 244mm x 176mm x 190mm.

2. More than 3000@90% DOD 25℃.

3. High discharging current capacity, working well with most of inverters in the market.

4. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.

5. Series & Parallel connections are available.

6. OEM & ODM service are availble.

Safest & Highest-cycle

No leakage, harmful fumes, or potential threat of explosion, LiFEPO4 battery has better thermal and chemical stability. Over 3000 cycles, also the cell is able to deliver virtually full power until it is discharged without harming the battery.

Long service life

Lithium rechargeable battery cycles more than 3000 times,which is more than 8 times comparing with Lead-acid batteries(usually only last for 300-400 cycles).



Specification of Lifepo4 Battery 12v 80AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 80Ah/1024Wh
Physical Dimension 244mm x 176mm x 190mm
Weight 10KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Max. Charging Current 80A
Max. Continuous Discharging Current 80A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
BMS Integrated & inbuilt in the battery
Connector Copper pillar
Protection Class IP65
Battery Cells Type Prismatic

Battery Management System(BMS)

The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.



Application

Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS

Robot Camping Car 12V LiFePo4 Battery 12v 80ah Deep Cycle Battery 0

Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.



Why choose us:

1. We offer one-stop power solutions, which saves design time and cost for customer:

-- Pack design / External Case design / BMS design

2. Strict quality control system which enhances customers' competitiveness:

-- 100% PCM test by IQC

-- 100% Capacity test by OQC

3. Delivery on time & excellent service:

-- Fast Delivery in 10 days if stock

-- 8h response & 48h solution
