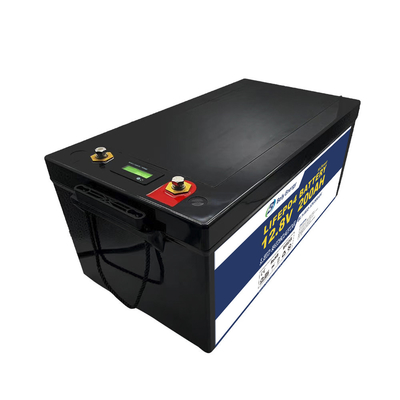

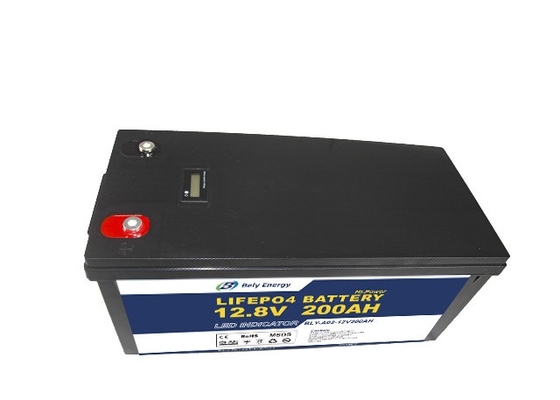

12V 200Ah Powerwall Battery Backup Submarine LED Display Battery
  • 12V 200Ah Powerwall Battery Backup Submarine LED Display Battery
  • 12V 200Ah Powerwall Battery Backup Submarine LED Display Battery

12V 200Ah Powerwall Battery Backup Submarine LED Display Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V200AHL
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah/2560Wh
Cycle Life:
≥3000cycles
Weight:
22.5KGS
Dimension:
526mm X 235mm X 217mm/ 237mm
Warranty Time:
2 Years
Oem/odm:
Accepatable
Monitoring:
LCD Display
Charging Mode:
CCCV/IU
High Light:

12V 200Ah Powerwall Battery Backup

,

Submarine Powerwall Battery Backup

,

Submarine LED Display Battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

2021 New Technology 12V 200Ah Powerwall Battery With LED Display For Home Solar Energy Storage System , Submarine



Description of LiFePO4 Battery

1. More than 3000 cycles time and 2 years long guarantee time.

2. More rechargeable time, longer life time, economic and environmental protection.

3. Light weight and portable.

4. LIFEPO4 material more safe.

5. Inbuit BMS multiple security protection.

Safest & Highest-cycle

No leakage, harmful fumes, or potential threat of explosion, LiFEPO4 battery has better thermal and chemical stability. Over 3000 cycles, also the cell is able to deliver virtually full power until it is discharged without harming the battery.

Period of warranty

The period warranty 24 months from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

Specification of Lifepo4 Battery 12v 200AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 200Ah/2560Wh
Physical Dimension 526mm x 235mm x 217mm/ 237mm
Weight 22.5KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 80A
Max. Charging Current 150A
Recommended Max. Continuous Discharging current 120A
Max. Continuous Discharging Current 150A (Less than 25 mins)
Peak Discharging Current (≤20 sec.) 200A
Others

Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Protection Class IP65
Battery Cells Type Prismatic
Connector Copper pillar
Material ABS(anti-UV)
Color Blak or customized

Battery Management System(BMS)

BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.

Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge



APPLICATION AREAS

Remote control cars, boat, aircraft, toys
Medical devices, equipment and portable equipment

UPS, Solar, Wind, Mobile generator, Back up power
Solar power bank, Solar LED lighting, Solar street light
Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
Electric drill, electric saw, lawn mower and so on

12V 200Ah Powerwall Battery Backup Submarine LED Display Battery 0

Install the LiFePO4 battery

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.



Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



Caution:

- Do not store at above 60℃(140℉);

- Do not dispose of the battery in fire or water;

- Do not expose to high temperature, disassemble or short circuit;

- New Battery pack must be fully charged before use.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
