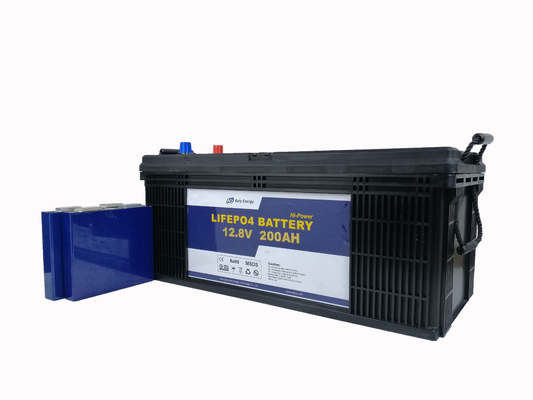

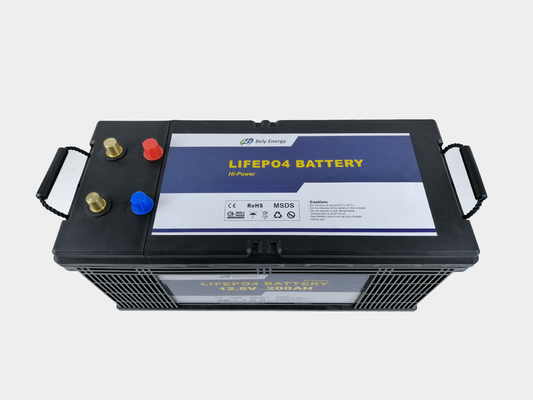

Anti UV 2560Wh 12v 200ah Lithium Ion Deep Cycle Battery
  • Anti UV 2560Wh 12v 200ah Lithium Ion Deep Cycle Battery
  • Anti UV 2560Wh 12v 200ah Lithium Ion Deep Cycle Battery

Anti UV 2560Wh 12v 200ah Lithium Ion Deep Cycle Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V200AH
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah/2560Wh
Cycle Life:
≥3000cycles
Weight:
22.5KGS
Dimension:
526mm X 235mm X 217mm/ 237mm
Warranty Time:
2 Years
Material:
ABS(anti-UV)
Oem/odm:
Accepatable
BMS:
Integrated & Inbuilt In The Battery
High Light:

Anti UV 2560Wh 12v 200ah

,

Anti UV 2560Wh 12v 200ah Lithium

,

Anti UV 2560Wh 12v 200ah Lithium Ion

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

3000 Cycles 12v 200ah Lifepo4 Deep Cycle Battery For Communication Station , Refuge Boat , Scooter



Description of LiFePO4 Battery

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 526mm x 235mm x 217mm/ 237mm.

2. High discharging current capacity, working well with most of inverters in the market.

3. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.

4. Patent Bluetooth connection, enable IOS & Android App to monitor instant battery status.

5. Series & Parallel connections are available.

6. OEM & ODM service are availble.

Safest & Highest-cycle

No leakage, harmful fumes, or potential threat of explosion, LiFEPO4 battery has better thermal and chemical stability. Over 3000 cycles, also the cell is able to deliver virtually full power until it is discharged without harming the battery.

Long service life:

Lithium rechargeable battery cycles more than 3000 times,which is more than 8 times comparing with Lead-acid batteries(usually only last for 300-400 cycles).



Specification of Lifepo4 Battery 12v 200AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 200Ah/2560Wh
Physical Dimension 526mm x 235mm x 217mm/ 237mm
Weight 22.5KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 80A
Max. Charging Current 150A
Recommended Max Continuous Discharging Current 120A
Max. Continuous Discharging Current 150A (Less than 25 mins)
Peak Discharging Current (≤20 sec.) 200A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Connector Copper pillar
Protection Class IP65
Battery Cells Type Prismatic

Battery Management System(BMS)

The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.

- Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.

Battery Benefits

Long cycle life

No memory effect

High energy density

Pollution-free

High discharge rate

Light weight

High working voltage for single battery cells

Capacity, resistance, Voltage, platform time consistency is good

With short-circuit production function, safe and reliable

Good consistency, low self discharge

Application

The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light, remote control cars, boat, aircraft, toys etc





Anti UV 2560Wh 12v 200ah Lithium Ion Deep Cycle Battery 0

Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



Caution:

- Do not store at above 60℃(140℉);

- Do not dispose of the battery in fire or water;

- Do not expose to high temperature, disassemble or short circuit;

- New Battery pack must be fully charged before use.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
