Lithium Iron Phosphate Battery
>
|
| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3,ROHS |
| Model Number | BLY-LFP12V200AHBLH |

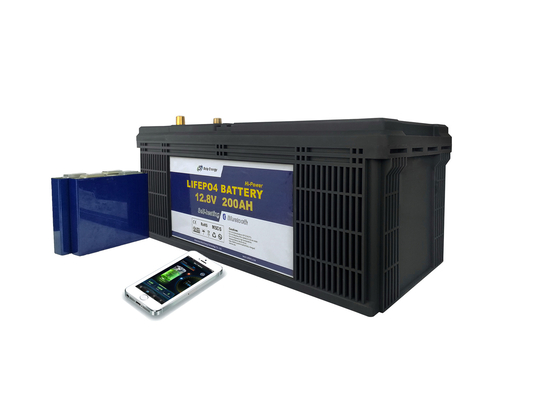

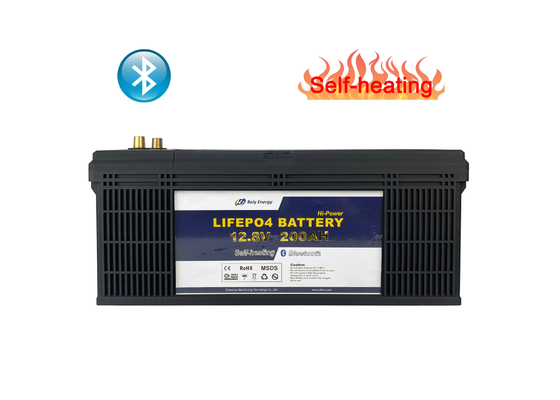

Bluetooth Lithium Battery 12V 200Ah li ion battery With Self heating For Base Station / Solar System
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 3000 times @ 90% DOD 25℃
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
Specification of Lifepo4 Battery 12v 200AH
| Specification | Parameter | Remarks | |
| Nominal | Voltage | 12.8V | |
| Capacity | 200Ah/2560Wh | ||

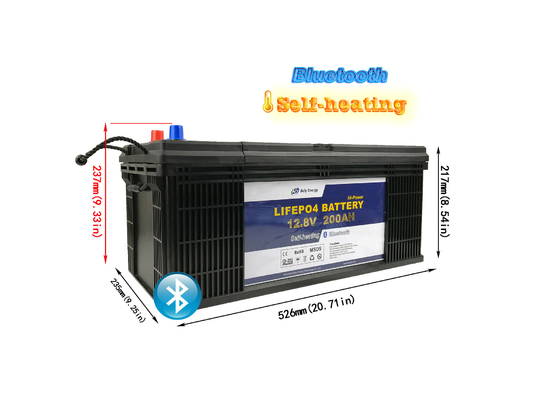

| Physical | Dimension | 526mm x 235mm x 217mm/ 237mm | |
| Weight | 22.5KGS | ||
| Electrical | Working Voltage Range | 10~14.6V | |
| End of Charge Voltage | 14.4~14.6V | ||
| Recommended Charging Current | 80A | ||
| Max. Charging Current | 150A | ||
| Recommended Max Continuous Discharging Current | 120A | ||
| Max. Continuous Discharging Current | 150A (Less than 25 mins) | ||
| Peak Discharging Current (≤20 sec.) | 200A | ||
| Others | Charging Temperature Range | 0~55℃ | |
| Discharging Temperature Range | -20~60℃ | ||
| Storage Temperature Range | -20~60℃ | ||
| Cycle Life | ≥3000Cycles | ||
| Internal Impedance | ≤20mΩ | ||
| Battery Cells Type | Prismatic | ||
| Connector | Copper pillar | ||
| Material | ABS(anti-UV) | ||
| Protection Class | IP65 | ||
| Monitoring | Bluetooth 4.0 with Smartphone APP | ||
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Heating Function
Charging Heating When Temperture <-1℃ Even to -30℃
Heated to 5℃ and Charge Well
(Temperature can be preseted and customized)
Smart Built-in BMS (Integrated & Inbuilt in the Battery)
passive balancing (active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. Besides, Bluetooth function for option that enables to monitor battery status, such as, voltage, capacity and so on.
APPLICATION AREAS
The areas of application of this battery are specifically for the stationary or mobile area. Lithium batteries are diverse. Especially Mobile homes, solar, e-boats, electric scooters, golf carts or electronic-mobiles / wheelchairs and cleaning machines will always be more often equipped with it.
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty. Enable to prolong.
