Lithium Iron Phosphate Battery
>
|
| Place of Origin | China |
| Brand Name | bely |
| Certification | CE, MSDS, UN38.3, ROHS |
| Model Number | BLY-LFP12V80AHBLH |

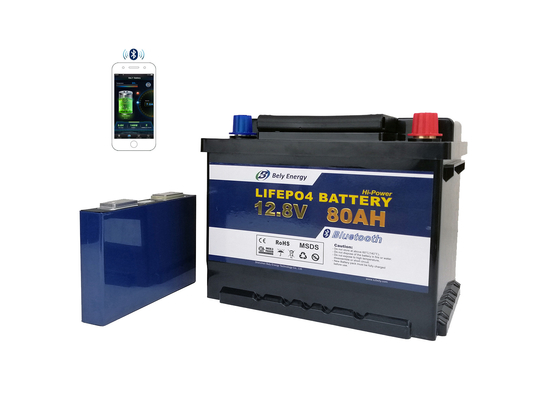

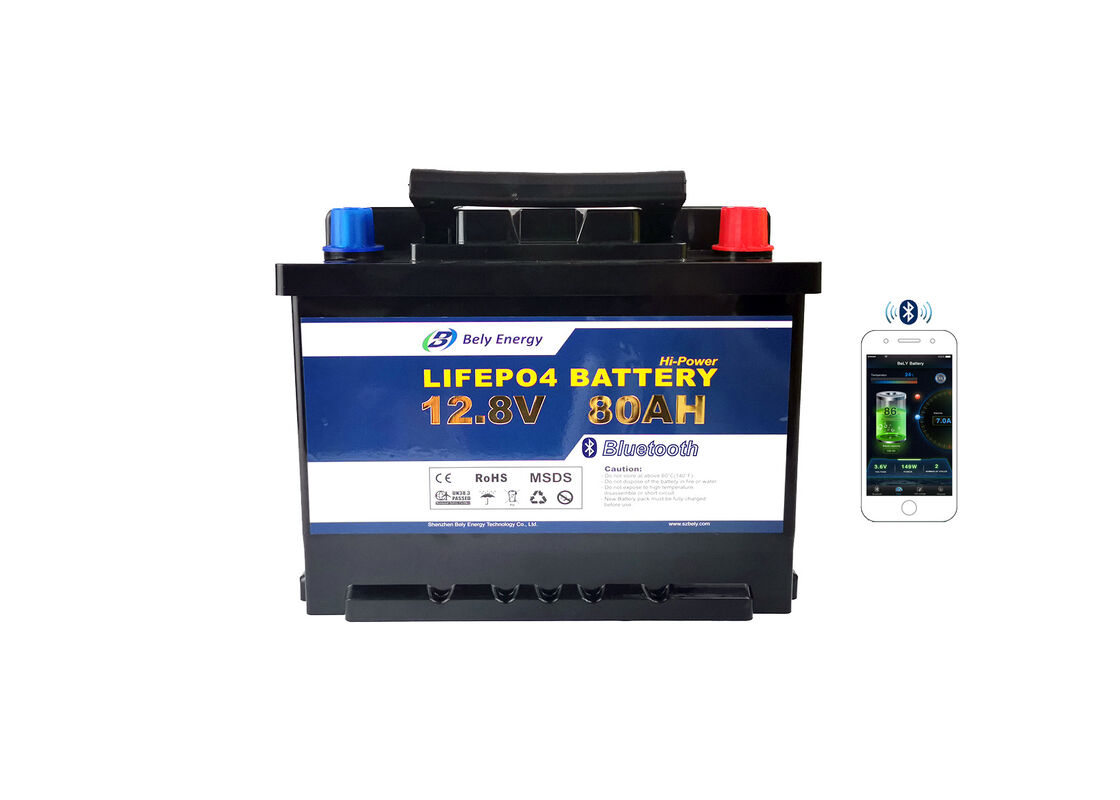

12v 80AhLithium Iron Phosphate Battery With Blutooth & Self Heating Battery for electric scooter
| Name | 12v 80Ah LifePO4 Bluetooth And Self Heating Lithium Battery | Application | Golf Cart, UPS, Street Light Communication Station, Yacht/Marine, RV, Home storage, Robot, Camping Car, ect. |
| Style | Lithium Iron Phosphate Battery | Color | Black and Customized |
| OEM/ODM | Accepatable | Battery Cells Type | Prismatic |
Feature Of Bely LiFePO4 Lithium Battery
1. General Information
1.1 Smart Built-in BMS
1.2 EASY REPLACEMENT THE EXISTING BATTERY
1.3 APPLICATION AREAS
1.4 BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
1.5 PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
2. Battery Specification
| Specification |
Parameter |
Remarks |
|
Nominal Voltage |
12.8V | |
| Nominal Capacity | 80Ah/1024Wh | |

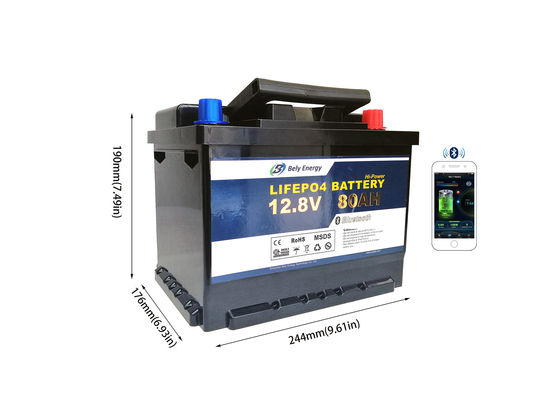

| Size/mm | 355mm x 175mm x 190mm | |
| Net Weight | 10kgs | |
| Working Voltage Range | 10-14.6V | |
| Charging mode | CCCV/IU | |
| End of Charge Voltage | 14.4~14.6V | |
| Recommended Charging Current | 40A | |
| Max. Charging Current | 80A | |
| Max. Continuous Discharging Current | 80A | |
| BMS (Battery Management System) | Integrated & inbuilt in the battery | |
| Monitoring | Bluetooth 4.0 with Smartphone APP | |
| Application / Interconnection | Parallel Connection | |
| Charging Temperature Range | 0～55℃ | |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Terminal | Protruding Copper Pillar | |
| Internal Impedance | ≤20mΩ | |
| Life Time Designed@+25℃ | 10 years | |
| Protection Class | IP65 |
3. Battery Management System (BMS)
The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.
- Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
4. Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 3000 times @ 100% DOD
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
5. Function
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Marks
Heating fuction
Charging Heating When Temperture <-1℃ Even to -30℃ Heated to 5℃ and Charge Well (Temperature can be preseted and customized)
6. Application
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
7. Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active so that it always works maximum
8. Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
9. Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
