BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery
  • BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery
  • BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery
  • BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery
  • BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery

BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery

Place of Origin China
Brand Name bely
Certification CE, MSDS, UN38.3, ROHS
Model Number BLY-A01-12V50AHBL
Product Details
Type:
LifePO4
Nominal Voltage:
12.8V
Nominal Capacity:
50Ah / 640Wh
Cycle Life:
≥3000 @ 90% DOD 25 ℃
Net Weight:
Around 7.5kgs
Battery Dimension:
198mm(L)*166mm(W)*170mm(H)
IP Class:
IP65
Material:
ABS(anti-UV)
High Light:

Bluetooth 4.0 12V LiFePo4 Battery

,

BMS 12V LiFePo4 Battery

,

50 amp hour lithium ion battery

Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60 days for mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

12V LiFePo4 Battery 12V 50Ah li ion battery With Bluetooth for Motohomes / Scooter / home appliance



Introduce

Are you looking for the the best LiFePO4 battery? Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, High discharging current capacity, working well with most of inverters in the market.



Name  12V 50Ah LiFePO4 Battery  Application Home appliance, Solar Panel, Yacht/Marine, RV, E-bike, Robot, Camping Car, ect.
Style 12V LifePO4 Battery Color Black and Customized
OEM/ODM Accepatable Battery Cells Type Prismatic

1. Very suitable for Solar Panel, E-bike  with battery size: 198mm x 166mm x 170mm

2. Series & Parallel connections are available.





OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery 0

BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery 1



1. Battery Specification



Specification

Parameter

Nominal Voltage

12.8V

Nominal Capacity

50Ah/640Wh

Size/mm

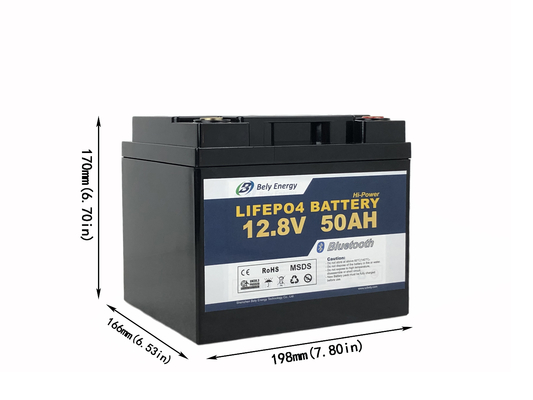

198mm x 166mm x 170mm

Net Weight

7.5kgs

Working Voltage Range

10-14.6V

Charging mode

CCCV/IU
End of Charge Voltage 14.4~14.6V
Charging Current 30A
Discharging Current 60A
Equalizing Current(A) 50A
BMS (Battery Management System) Integrated & inbuilt in the battery
Monitoring Bluetooth 4.0 with Smartphone APP
Application / Interconnection Parallel Connection
Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Terminal Protruding Copper Pillar
Internal Impedance ≤20mΩ
Life Time Designed@+25℃ 10 years
Protection Class IP65

Battery Benefits

High discharging current capacity, working well with most of inverters in the market.

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High cycles life time more than 3000 times @ 90% DOD

Hign max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge

The utility model provides a countersunk head type battery terminal, reasonable structure, suitable for terminal built-in battery structure, effectively avoid the short circuit of the positive and negative extremons of the battery, avoid the positive and negative extremons wear out the battery shell when the battery is stacked in the battery box, and convenient stacking.



Bluetooth Function

LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.



BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery 2

2. General Information

2.1 BMS

BATTERY MANAGEMENT SYSTEM

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.

Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.

2.2 EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.

2.3 APPLICATION AREAS

The areas of application of this battery are specifically for the stationary or mobile area. Lithium batteries are diverse. Especially Mobile homes, solar, e-boats, electric scooters, golf carts or electronic-mobiles / wheelchairs and cleaning machines will always be more often equipped with it.

2.4 BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

2.5 PERFORMANCE / EFFICIENCY

A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.





3. Application



Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS

BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery 3



4. Storage and transportation



The battery must be packed and protected well during transport.

The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).

Never lift the battery by the terminals, only by the handles.

The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.

The battery should be charged every three months to keep it active so that it always works maximum



5. Peaking And Delivery

BMS Bluetooth 4.0 12V LiFePo4 Battery 50 Amp Hour Lithium Ion Battery 4

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



6. Important instructions



Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



7. Install the LiFePO4 battery



Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.





LiFePO4 Battery Performance and Test Conditions



 Standard test conditions

Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.



Standard Charge/Discharge

Standard Charge: 0.2C

Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.

Standard Discharge: 0.2C

Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C



FAQ

Q1. What is the biggest difference between your battery and other suppliers:

A: Safest with longer lifespan.



Q2. How about your LiFePO4 Battery delivery time?

A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q3: How about your warranty?

A: 2 years warranty. enable to prolong



Q4. Is this LiFePO4 Battery safe?

A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
