12V LiFePo4 Battery
>
|
| Place of Origin | China |
| Brand Name | bely |
| Certification | CE, MSDS, UN38.3, ROHS |
| Model Number | BLY-LFP12V80AHBL |

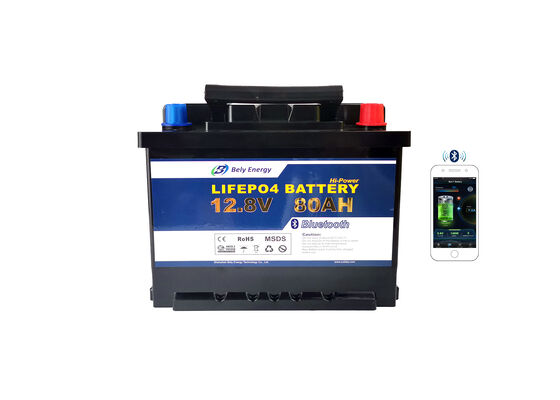

12V 80Ah 12V LiFePo4 Battery With Bluetooth For Home Applicance For home appliance
Quick detail of Lifepo4 Battery
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Marks
This specification defines the performance of rechargeable LiFePO4 battery pack BLY-LFP-12V 100AHBLH manufactured by Shenzhen Bely Energy Technology Co., Ltd. describes the type, performance, technical characteristics, warning and caution of the battery pack. The battery pack supports Bluetooth communication function. Through Android and IOS APP, the battery status and information can be read. Especially due to the Android system’s openness, different smartphone manufacturer will have their own different Bluetooth hardware version and customized feature Android systems. So the APP may not work well on some smartphones (with Android system) due to the compatible issue. It is necessary for the customer to confirm whether the phone is compatible with the APP.
Bely 12V 200Ah Bluetooth LiFePO4 battery pack support max contiunous discharge current 150A (Less than 25 mins) and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.
Description of LiFePO4 Battery
Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 3,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Manual measurement will have an error of about 2-3cm
Bely LiFePO4 Battery develop tailored battery solutions for each market.
1. General Information
1.1 EASY REPLACEMENT THE EXISTING BATTERY
1.2 APPLICATION AREAS
1.3 BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
1.4 PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
2. Battery Specification
| Specification |
Parameter |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
80Ah/1024Wh |
|
Size/mm |
244mm x 176mm x 190mm |
|
Net Weight |
10kgs |
|
Working Voltage Range |
10-14.6V |
|
Charging mode |
CCCV/IU |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 40A |
| Max. Charging Current | 80A |
| Max. Continuous Discharging Current | 80A |
| BMS (Battery Management System) | Integrated & inbuilt in the battery |
| Monitoring | Bluetooth 4.0 with Smartphone APP |
| Application / Interconnection | Parallel Connection |
| Charging Temperature Range | 0～55℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -20~60℃ |
| Terminal | Protruding Copper Pillar |
| Internal Impedance | ≤20mΩ |
| Life Time Designed@+25℃ | 10 years |
| Protection Class | IP65 |
3. Battery Management System (BMS)
The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.
- Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
4. Application
5. Storage and transportation
The battery must be packed and protected well during transport.
The lithium battery must be transported according to the rules for transport, these should always be followed (transportation code UN3480/UN38.3).
Never lift the battery by the terminals, only by the handles.
The battery should be stored in temperatures from -10℃ to +30℃. During transport, the battery should be about 50-60% charged.
The battery should be charged every three months to keep it active so that it always works maximum
6. Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
7. Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
FAQ:
Q1. What is the biggest difference between your battery and other suppliers:
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 2 years warranty
Q4. Is this LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
Why Choose US:
1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
Contact Us at Any Time
