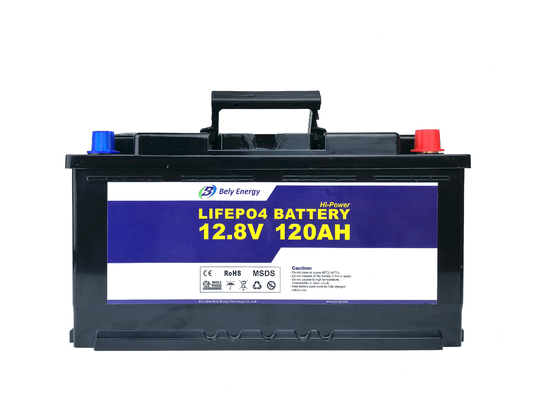

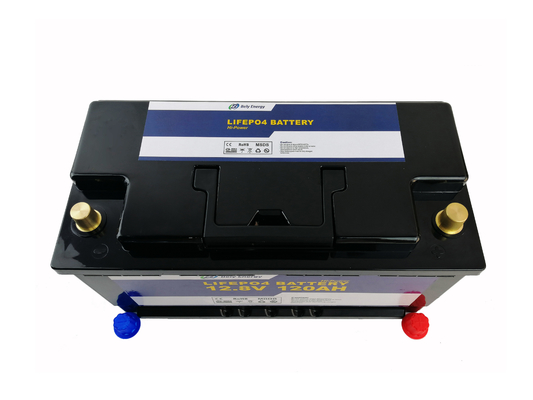

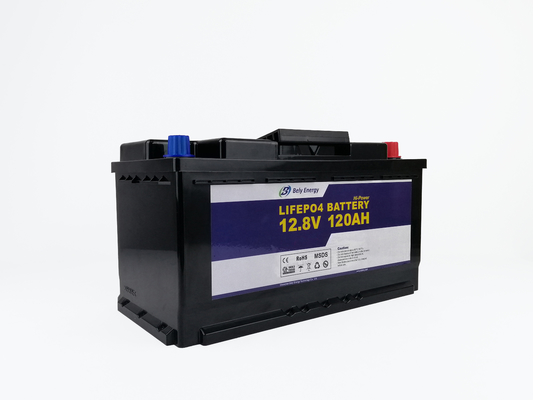

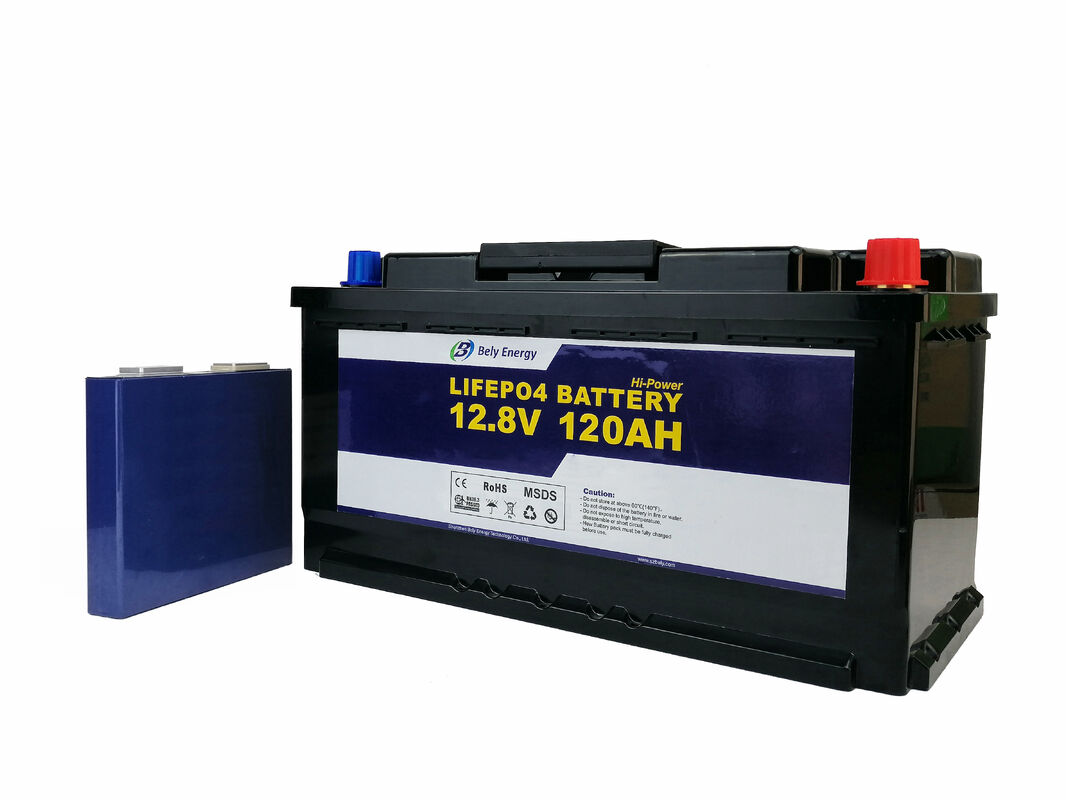

Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah
  • Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah
  • Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah
  • Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah
  • Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah

Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V120AH
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
120Ah/1536Wh
Dimension:
355mm X 175mm X 190mm
Weight:
14KGS
Color:
Black Or Customized
Oem/odm:
Accepatable
Material:
ABS(anti-UV)
Cycle Life:
3000cycles
Warranty:
2 Years
High Light:

RV lithium ion battery 12v 120ah

,

Leisure lithium ion battery 12v 120ah

,

Deep Cycle Lithium Ion Battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

2 Years Warranty 12v 120Ah Deep Cycle Lithium Battery for Boats , RV , Robot



Description of LiFePO4 Battery

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 355mm x 175mm x 190mm.

2. More than 3000@90% DOD 25℃.

3. High discharging current capacity, working well with most of inverters in the market.

4. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.

5.Series & Parallel connections are available.

6.OEM & ODM service are availble.

Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah 0

Period of Warranty

The period of warranty is 2 years from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

Specification of Lifepo4 Battery 12v 120AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 120Ah/1536Wh
Physical Dimension 355mm x 175mm x 190mm
Weight 14KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 60A
Max. Charging Current 100A
Max. Continuous Discharging Current 100A
Peak Discharging Current (≤20 sec.) 150A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Connector Copper pillar
Protection Class IP65
Life Time Designed@+25℃ 10 Years
Battery Cells Type Prismatic
Smart Built-in BMS

Passive balancing (active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life.

Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High cycles life time more than 3000 times @ 90% DOD

Hign max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge



Application

Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS

Boats RV Leisure Deep Cycle Lithium Ion Battery 12v 120ah 1

Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



Warning & Tips

1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;

2. When the battery run out of power, please charge it within 15 days;

3. Please use the original or recommended charger for this battery;

4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;

5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.

6. Please far away from children or pets.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
