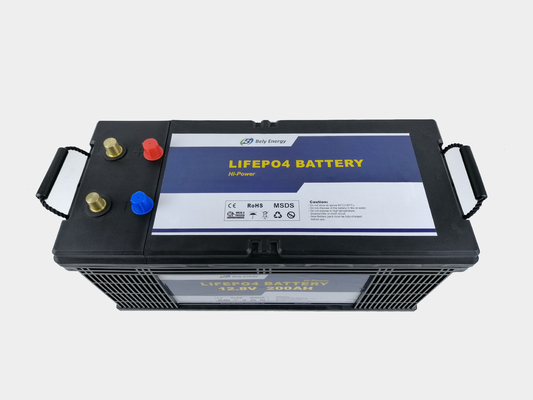

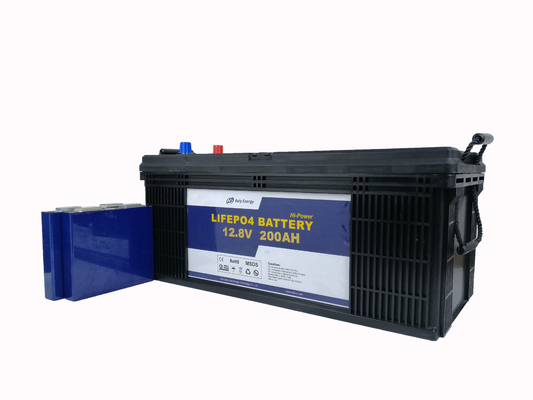

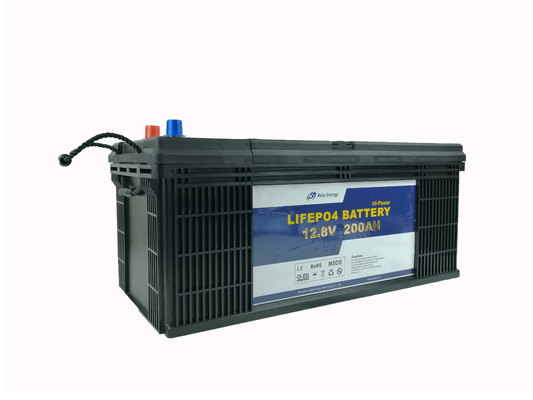

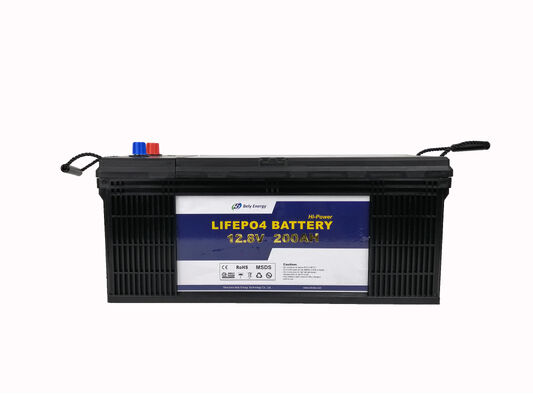

UN38.3 3000 Cycles 12V 200Ah Lifepo4 Battery For Solar Energy Storage
  • UN38.3 3000 Cycles 12V 200Ah Lifepo4 Battery For Solar Energy Storage
  • UN38.3 3000 Cycles 12V 200Ah Lifepo4 Battery For Solar Energy Storage
  • UN38.3 3000 Cycles 12V 200Ah Lifepo4 Battery For Solar Energy Storage
  • UN38.3 3000 Cycles 12V 200Ah Lifepo4 Battery For Solar Energy Storage

UN38.3 3000 Cycles 12V 200Ah Lifepo4 Battery For Solar Energy Storage

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V200AH
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah/2560Wh
Cycle Life:
≥3000cycles
Weight:
22.5KGS
Dimension:
526mm X 235mm X 217mm/ 237mm
Warranty Time:
2 Years
Material:
ABS(anti-UV)
Oem/odm:
Accepatable
BMS:
Integrated & Inbuilt In The Battery
High Light:

Bely 200Ah 2560Wh Lifepo4 Battery

,

Bely UN38.3 12V 200Ah Lifepo4 Battery

,

Bely lifepo4 battery for solar energy storage

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

3000 Cycles 12V 200Ah Lifepo4 Battery for Solar Energy System



Description of LiFePO4 Battery

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 526mm x 235mm x 217mm/ 237mm.

2. High discharging current capacity, working well with most of inverters in the market.

3. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.

4. Patent Bluetooth connection, enable IOS & Android App to monitor instant battery status.

5. Series & Parallel connections are available.

6. OEM & ODM service are availble.

LIFECYCLES (BATTERY LIFESPAN)

Up to 90% capacity for 3,000 cycles in recommended conditions. Lithium batteries last so long that the price per use is a fraction of traditional batteries.

Period of Warranty

The period of warranty is 2 years from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

Specification of Lifepo4 Battery 12v 200AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 200Ah/2560Wh
Physical Dimension 526mm x 235mm x 217mm/ 237mm
Weight 22.5KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Max. Charging Current 150A
Max. Continuous Discharging Current 150A (Less than 25 mins)
Peak Discharging Current (≤20 sec.) 200A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Connector Copper pillar
Protection Class IP65
Battery Cells Type Prismatic

Battery Management System(BMS)

The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.

- Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.

Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High cycles life time more than 3000 times @ 90% DOD 25℃

High max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge

Application

The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc





UN38.3 3000 Cycles 12V 200Ah Lifepo4 Battery For Solar Energy Storage 0

Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
