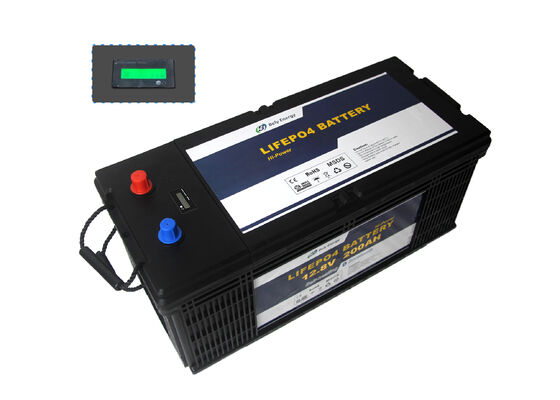

Led Light Lithium Battery For Refugee Boat
  • Led Light Lithium Battery For Refugee Boat
  • Led Light Lithium Battery For Refugee Boat
  • Led Light Lithium Battery For Refugee Boat

Led Light Lithium Battery For Refugee Boat

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V200AHL
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah/2560Wh
Cycle Life:
≥3000cycles
Dimension:
526mm X 235mm X 217mm/ 237mm
Weight:
22.5KGS
Color:
Blak Or Customized
Warranty Time:
2 Years
Oem/odm:
Accepatable
Charging Mode:
CCCV/IU
High Light:

Led Light Lithium Battery For Refugee Boat

,

UPS Led Light Lithium Battery

,

UN38.3 EV LiFePo4 Battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Bely Storage Batteries 12V 200Ah Led Light Lithium Battery For Refuge Boat / UPS / EV



Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and
offers a higher charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.



Bely 12V 200Ah LiFePO4 battery pack support max contiunous discharge current 150A (Less than 25 mins) and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.



Specification of Lifepo4 Battery 12v 200AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 200Ah/2560Wh
Physical Dimension 526mm x 235mm x 217mm/ 237mm
Weight 10KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 80A
Max. Charging Current 150A
Recommended Max Continuous Discharging Current 120A
Max. Continuous Discharging current 150A (Less than 25 mins)
Peak Discharging Current (≤20 sec.) 200A
Others

Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Protection Class IP65
Battery Cells Type Prismatic
Connector Copper pillar
Material ABS(anti-UV)





Battery Management System(BMS)

The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.

- Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.



APPLICATION AREAS

Medical devices, equipment and portable equipment

Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS



Led Light Lithium Battery For Refugee Boat 0

  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
  • High power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity wider temperature range: -20℃~60℃.
  • Long cycle life: offers up to 20 times longer cycle life and 5 times longer/calendar life the lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
  • Lighter weight: About 40% of the weight of a comparable lead acid battery. A “dron in”replacement for lead acid batteries.
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
  • Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.
  • Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
  • Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
  • Higher discharge rate, faster charging and discharging When there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
  • Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
  • High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
  • Cycle durability for a single cell is 2000 cycles 100% DOD, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.



Our Services & Strength

With reliable test equipments, batteries parameter and specification can satisfy the customers' requirements and meet the market standards well. Quality can be guaranteed and assured for shipments.

Led Light Lithium Battery For Refugee Boat 1

FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.



Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
