48V LiFePO4 Battery
Created with Pixso. 48V LiFePO4 Battery Pack - 5120Wh, 100A Discharge, IP65 Enclosure

48V LiFePO4 Battery Pack - 5120Wh, 100A Discharge, IP65 Enclosure

Brand Name: BeLY
Model Number: LFP-48V100AHBLH
MOQ: 10
Delivery Time: 30
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Features:
With Bluetooth And Self-heating
Type:
Energy Storage System
Dimension:
523*269*218mm
Rated Capacity:
100Ah
Components:
LifePO4
Energy:
5120Wh
Bluetooth:
Optional
Normal Voltage:
51.2V
Packaging Details:
UN Carton
Supply Ability:
2000
Highlight:

48V LiFePO4 battery 5120Wh

,

48V LiFePO4 battery IP65 enclosure

,

48V LiFePO4 battery 100A discharge

Product Description
48V LiFePO4 Battery Pack - 5120Wh, 100A Discharge, IP65 Enclosure
Attribute Value
Type Energy Storage System
Dimension 523*269*218mm
Rated Capacity 100Ah
Components LifePO4
Energy 5120Wh
Bluetooth Optional
Features With Bluetooth and Self-heating
Normal Voltage 51.2V
Product Overview

The 48V LiFePO4 battery pack is equipped with cutting-edge technology that ensures maximum efficiency and performance. It features a discharging current of 100A, making it suitable for high-power applications that require substantial energy. With its robust and durable design, this battery pack can withstand extreme temperature conditions, making it ideal for use in harsh environments.

Our 48V LiFePO4 battery pack is composed of top-quality components, including LifePO4, a type of lithium-ion battery known for superior performance and reliability. Unlike other lithium-ion batteries, LifePO4 batteries are less prone to overheating, making them much safer to use. Additionally, they have a longer lifespan compared to other battery types, providing long-term cost savings.

The battery pack is designed for easy installation and use, with multiple output voltage options (110V, 220V, 230V, and 240V) ensuring compatibility with a wide range of devices. Manufactured in Shenzhen with years of industry expertise, each unit is built to the highest standards of quality and reliability, backed by comprehensive warranty and customer support.

Key Features
  • Product Name: 48V LiFePO4 Battery Pack
  • Cycle Span: 6000 Cycles
  • Components: LifePO4
  • Dimension: 523*269*218mm
  • Energy: 5120Wh
  • Discharging Current: 100A
Technical Specifications
ELECTRICAL SPECIFICATIONS
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Capacity @0.2C >290 min
Energy 5120 Wh
Resistance <10mΩ
Discharge Efficiency >99%
Self Discharge <3% per Month
Modules Connections 16S1P
MECHANICAL SPECIFICATIONS

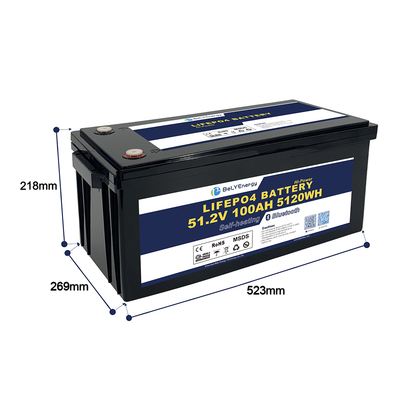

Dimensions (L x W x H) 523 x 269 x 218mm
Net Weight 40.0kg
Terminal Type SAE+M8
Terminal Torque 10-15N-m
Case Material ABS
Enclosure Protection IP65
CHARGE SPECIFICATIONS
Maximum Charge Current 100A
Recommended Charge Current ≤50A
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 100A
Max. Pulse Discharge Current 200A (<5S)
TEMPERATURE SPECIFICATIONS
Discharge Temperature -4~140ºF (-20 ~60℃)
Charge Temperature 32~140ºF (0℃~+60℃)
Temperature Range Storage<1 month -4~122ºF (-20℃~+50℃)
Temperature Range Storage >1 month 23~104ºF (-5℃~+40℃)
Temperature Protection of FET (Built-in) 194ºF (90℃)
Battery Management System (BMS)

The battery management system (BMS) built into each battery ensures safe operation by:

  • Protecting cells against under/over voltage by adjusting or terminating charge/discharge
  • Shutting down the system in case of excess temperature
  • Stopping charging during under temperature conditions
  • Optional communication with Victron devices and among batteries
  • Bluetooth app for monitoring battery status and history
Battery Benefits
  • High performance traction/storage battery
  • Integrated BMS for safety and performance
  • Safe lithium technology (LiFePO4)
  • Long cycle life (>5000 cycles @ 80% DOD)
  • High max continuous discharging current
  • Lighter weight compared to lead acid batteries
  • Direct replacement for lead acid batteries
  • Low self-discharge rate
Applications
  • Off-Grid Solar Power Systems: Store excess solar energy for homes, cabins, and off-grid locations
  • Backup Power Supply: Reliable emergency power during outages
  • Electric Vehicles: Safe power source for electric cars and trucks
  • Mobile Power Stations: Compact power for camping and mobile offices
  • Residential: Energy storage and backup for homes
  • Commercial: Power solutions for businesses
  • Industrial: Equipment and machinery power
48V LiFePO4 Battery Pack - 5120Wh, 100A Discharge, IP65 Enclosure 0
Storage and Transportation

The battery must be properly packed and protected during transport according to UN3480/UN38.3 transportation codes. Always lift by the handles, never by terminals. Store between -10℃ to +30℃, transport at 50-60% charge, and recharge every three months during storage to maintain optimal performance.

Important Instructions
  • Do not open the battery without consulting the dealer (voids warranty)
  • Only use for intended applications
  • Prevent short-circuiting with proper cable protection
  • Qualified specialists only for installation/maintenance
  • Avoid permanent direct sunlight and temperatures above +60°C
  • Use only compatible chargers
  • Disconnect devices during long storage
Installation Guidelines

Lithium batteries are heavy - ensure secure attachment and use proper lifting equipment. Incorrect polarity connection will irreparably damage the BMS (not covered by warranty). Always handle with care as unsecured batteries can become projectiles in accidents.
