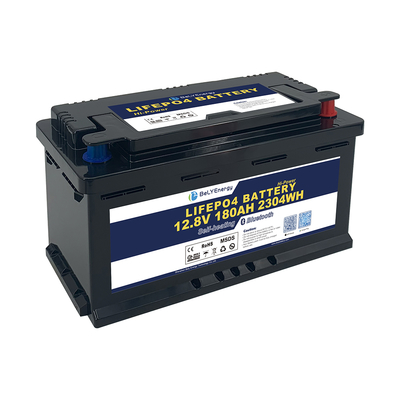

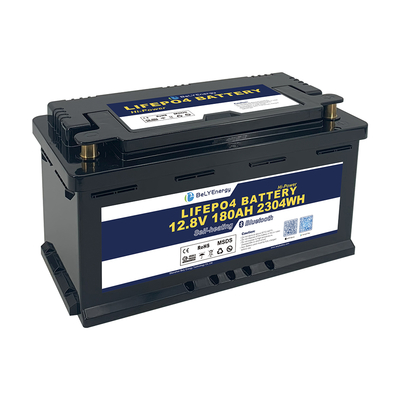

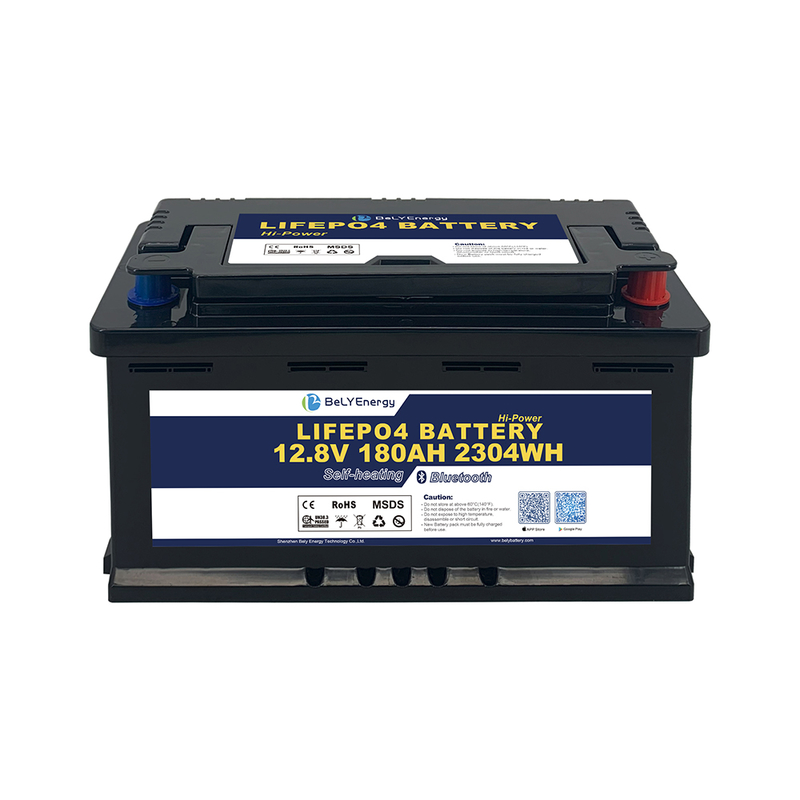

12V 180AH LiFePO4 Lithium Battery with H8 DIN case and smart BMS

• New Grade A prismatic cells to ensure long cycle life and good performance

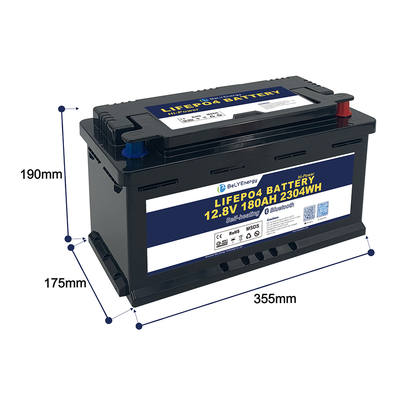

• Perfect dimension for underseat installation with H8 DIN case size: 353mm x 175mm x 190mm
• Passive & active balancer integrated
• Communication with Victron devices and among batteries in parallel communication is optional
• Maximum discharging current: 200A
• Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS
• Series & Parallel connections are available
• OEM & ODM service are available
• Bluetooth and self-heating integrated for charging under low temperature

The battery management system (BMS) built into each battery ensures that the battery switches off in the event of under voltage or overload and automatically turns on again when the problem is resolved.

• Protection of the cell against under voltage by switching off the load in good time
• Protection of the cell against over voltage by reducing the charging current or switching off the charging process
• Shutting down the system in the event of excess temperature
• Charging of the battery is stopped in case of under temperature
• Passive and active balancer are integrated in BMS
• Communication with Victron devices and among batteries are optional features for customization
• Bluetooth app to monitor battery status and history
• Self-heating function to ensure normal charging under low temperature environment

• High performance traction/storage battery
• Integrated (BMS) battery management system
• Safe lithium technology (LiFePO4)
• High cycles life time more than 3000 times @ 100% DOD
• High max continuous discharging current
• Much lighter weight compared to lead acid battery
• One to one replaceable with lead acid battery
• Low self-discharge

• Motorhomes, caravans and RV
• Photovoltaics, solar systems and renewable energies
• High performance traction/storage battery
• Fishing, electric boat motors and sonar
• Mobile power supply, camping and leisure
• Emergency power supply/UPS

• The battery must be packed and protected well during transport
• The lithium battery must be transported according to the rules for transport (transportation code UN3480/UN38.3)
• Never lift the battery by the terminals, only by the handles
• The battery should be stored in temperatures from -10℃ to +30℃
• During transport, the battery should be about 50-60% charged
• The battery should be charged every three months to keep it active
