24v 200AH Deep Cycle Lithium Battery
  • 24v 200AH Deep Cycle Lithium Battery
  • 24v 200AH Deep Cycle Lithium Battery
  • 24v 200AH Deep Cycle Lithium Battery
  • 24v 200AH Deep Cycle Lithium Battery

24v 200AH Deep Cycle Lithium Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-A02-24V200AH
Product Details
Type:
LiFePO4
Nominal Voltage:
25.6V
Nominal Capacity:
200Ah/5120Wh
Cycle Life:
>5000cycles
Weight:
Around 59KGS
Dimension:
522mm X 267mm X 220mm
Warranty Time:
2 Years
Material:
ABS(anti-UV)
Oem/odm:
Accepatable
Protection Class:
IP65
High Light:

24v 200AH Deep Cycle Lithium Battery

,

UN38.3 Deep Cycle Lithium Battery

,

CE 24v lithium ion deep cycle battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Used For Solar System 24v 200AH Deep Cycle Lithium Battery With CE, UN38.3 Approval

For Base Station / Submarine / UPS

Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and
offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.



Description of LiFePO4 Battery

1. More than 5000cycle time and 2 years long guarantee time.

2. More rechargeable time, longer life time, economic and environmental protection.

3. LIFEPO4 material more safe.

4. Inbuit BMS multiple security protection.



EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.



Specification of Lifepo4 Battery 24V 200AH

Specification Parameter Remarks
Nominal Voltage 25.6V
 Capacity 200Ah/5120Wh

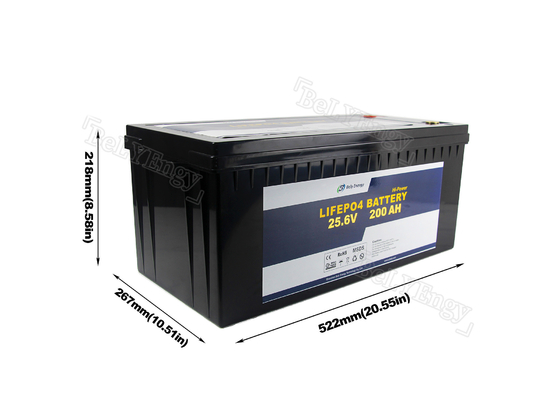

Physical Dimension 522mm x 267mm x 220mm
Weight 50KGS
Electrical Discharge Voltage  25.6V
Charge Voltage 25.6~29.4V
Charging Current 150A
Discharging Current 150A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥5000Cycles
Internal Impedance ≤50mΩ
Battery Cells Type Prismatic
Connector Copper pillar
Material Black or customized
Life time @+25℃ 10 years



Battery Management System(BMS)

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.



APPLICATION AREAS

Our lithium iron phosphate batteries can be used in the following areas: Home energy storage system, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY loud speaker, air pump, fish finder, golf car, trolling motor, motorhome / RV & camper, Houseboat, Travel Trailer, Dump Trailer and more.



24v 200AH Deep Cycle Lithium Battery 0

Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High cycles life time more than 5000 times @ 25

Hign max continuous discharging current

One to one replaceable with lead acid battery

Low self-discharge



Packing&Shipping

24v 200AH Deep Cycle Lithium Battery 1

Strong and protective package way will protect each battery well.

Base on different transportation way, the battery package will be customized.
Different transportation way will be selected according to customers' requirements.
24v 200AH Deep Cycle Lithium Battery 2

FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty. Enable to prolong.
