|Place of Origin:||China|
|Certification:||CE, MSDS, UN38.3,ROHS|
|Minimum Order Quantity:||10pcs|
|Delivery Time:||7-14 days for samples, 35-60days fpr mass production|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union|
|Supply Ability:||100000pcs per month|
|Dimension:||526mm X 235mm X 217mm/ 237mm||Cycle Life:||3000 Cycles|
|Color:||Black Or Customized||Warranty Time:||2 Years|
|Oem/odm:||Accepatable||Monitoring:||Bluetooth 4.0 With Smartphone APP|
12V 300Ah grade a lithium battery,
robot grade a lithium battery,
lithium ion battery for home power storage

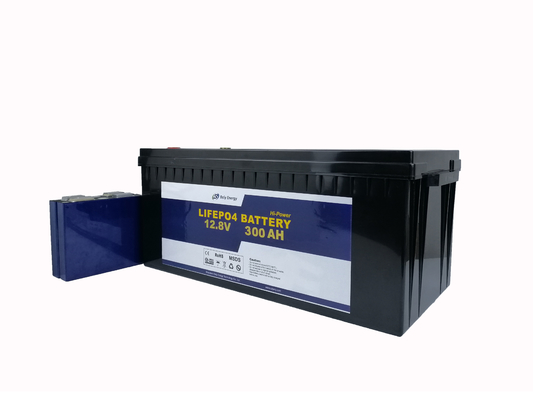

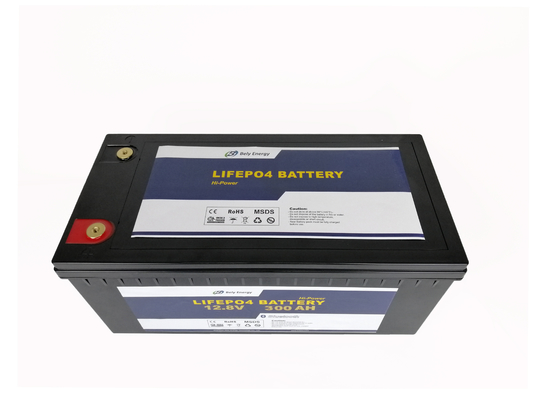

Grade A 12V 300Ah Lithium Ion Battery Power With Bluetooth For Home Storage , Robot , Communcation Station
Description of LiFePO4 Battery
1. More than 3000 cycles time and 2 years long guarantee time.
2. More rechargeable time, longer life time, economic and environmental protection.
3. Light weight and portable.
4. LIFEPO4 material more safe.
5. Inbuit BMS multiple security protection.
6. APP control monitoring.
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.
Specification of Lifepo4 Battery 12v 300AH
|Physical||Dimension||526mm x 235mm x 217mm/ 237mm|
|Electrical||Working Voltage Range||10~14.6V|
|End of Charge Voltage||14.4~14.6V|
|Recommended Charging Current||80A|
|Max. Charging Current||150A|
|Recommended Max Continuous Discharging Current||120A|
|Max. Continuous Discharging Current||150A (Less than 25 mins)|
|Peak Discharging Current (≤20 sec.)||200A|
|Others||Charging Temperature Range||0~55℃|
|Discharging Temperature Range||-20~60℃|
|Storage Temperature Range||-20~60℃|
|Battery Cells Type||Prismatic|
Battery Management System(BMS)
The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.
- Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
The areas of application of this battery are specifically for the stationary or mobile area. Lithium batteries are diverse. Especially Mobile homes, solar, e-boats, electric scooters, golf carts or electronic-mobiles / wheelchairs and cleaning machines will always be more often equipped with it.
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
