Place of Origin: | China |
Brand Name: | Bely |
Certification: | CE, MSDS, UN38.3,ROHS |
Model Number: | BLY-LFP-24V50AH |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 7-14 days for samples, 35-60days fpr mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 100000pcs per month |
Type: | LiFePO4 | Nominal Voltage: | 25.6V |
---|---|---|---|
Nominal Capacity: | 50Ah/1280Wh | Cycle Life: | >2000cycles |
Weight: | 12KGS | Dimension: | 395mm X 110mm X 286mm |
Warranty Time: | 2 Years | Material: | ABS(anti-UV) |
Oem/odm: | Accepatable | Protection Class: | IP65 |
High Light: | UPS Medical 50Ah 24V Lifepo4 Battery,Bely UPS 50Ah 24V Lifepo4 Battery,Bely UPS 50Ah 24v lifepo4 powerwall |

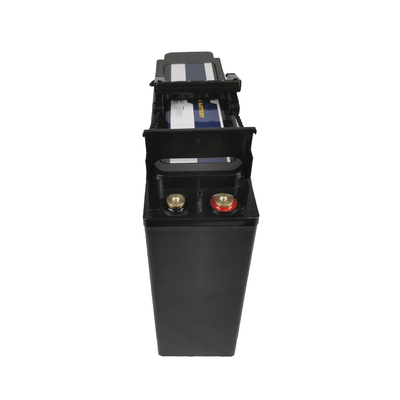

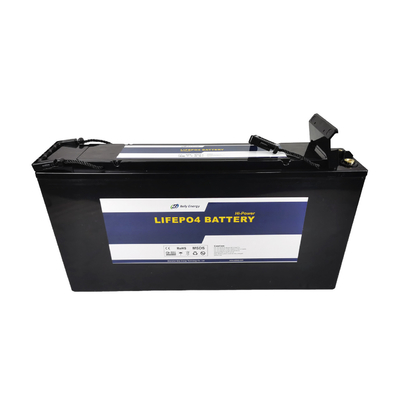

Bely Li Ion Battery 24V Lifepo4 Battery 24V 50Ah Power Wall For UPS / Medical / Base Station
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Description of LiFePO4 Battery
1. Very suitable for RV and replace the traditional lead acid battery with battery size: 395mm x 110mm x 286mm.
2. More than 2000 cycles @ 80% DOD.
3. High discharging current capacity, working well with most of inverters in the market.
4. Prismatic cells UL 1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS.
5.Series & Parallel connections are available.
6.OEM & ODM service are availble.
Period of Warranty
The period warranty 24 months from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Specification of Lifepo4 Battery 24V 40AH
Specification | Parameter | Remarks |
Nominal | Voltage | 25.6V |
Capacity | 50Ah/1280Wh | |
Physical | Dimension | 395mm x 110mm x 286mm |
Weight | 12KGS | |
Electrical | Discharge Voltage | 25.6V |
Charge Voltage | 25.6~29.4V | |
Charging Current | 40A | |
Discharging Current | 60A | |
Others | Charging Temperature Range | 0~55℃ |
Discharging Temperature Range | -20~60℃ | |
Storage Temperature Range | -20~60℃ | |
Cycle Life | >2000Cycles | |
Internal Impedance | <20mΩ | |
Battery Cells Type | Prismatic | |
Connector | Copper pillar | |
Material | Black or customized | |
Life time @+25℃ | 10 years |
Battery Management System(BMS)
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
APPLICATION AREAS
Suitable for RV, Caravan, Marine, Camper, Electric scooter, Golf Carts, Power wheels, Trolling motor, Tool trailer, Backup power supply, Solar, off-grid, etc.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 2000 times @ 80% DOD 25℃
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
Certificates approve qualified production and good quality products
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty. Enable to prolong.
