Bluetooth Lithium Battery
>
|
| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3, ROHS |
| Model Number | BLY-LFP-12V100AHBL |

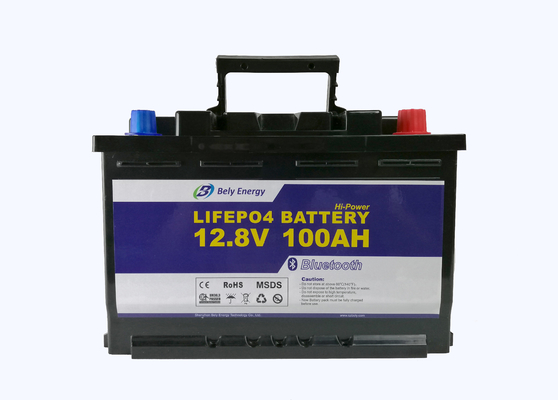

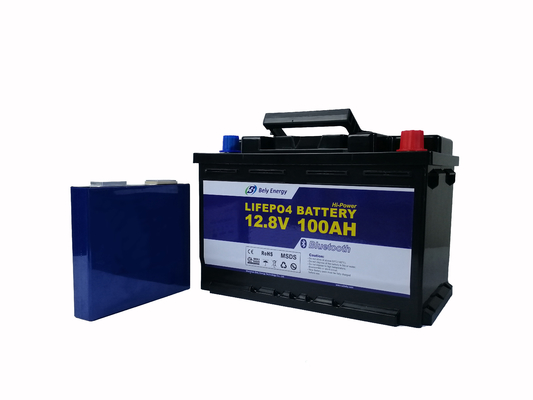

Used For Solar System Bluetooth Lithium Battery 12V 100Ah Ups Battery For Leisure / Toys
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
Bely 12V 150Ah LiFePO4 battery pack support max contiunous discharge current 150A (Less than 25 mins) and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.
1. Very suitable for RV and replace the traditional lead acid battery with battery size: 280mm x 176mm x 190mm.
2. More than 4000 cycles @ 100% DOD.
3. High discharging current capacity, working well with most of inverters in the market.
4. Prismatic cells UL1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS.
5. Patent Bluetooth connection, enable IOS & Android APP to monitor instant battery status.
6. Series & Parallel connections are available.
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack BLY-LFP-12V 100AHBL manufactured by Shenzhen Bely Energy Technology Co., Ltd. describes the type, performance, technical characteristics, warning and caution of the battery pack. The battery pack supports Bluetooth communication function. Through Android and IOS APP, the battery status and information can be read. Especially due to the Android system’s openness, different smartphone manufacturer will have their own different Bluetooth hardware version and customized feature Android systems. So the APP may not work well on some smartphones (with Android system) due to the compatible issue. It is necessary for the customer to confirm whether the phone is compatible with the APP.
1.1 BMS
BATTERY MANAGEMENT SYSTEM
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
1.2 EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.
1.3 APPLICATION AREAS
The areas of application of this battery are specifically for the stationary or mobile area. Lithium batteries are diverse. Especially Mobile homes, solar, e-boats, electric scooters, golf carts or electronic-mobiles / wheelchairs and cleaning machines will always be more often equipped with it.
1.4 BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
1.5 PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
2. Battery Specification
| No. | Specification | Remarks | |
| 1 | Composed type | 4S2P | 50Ah/3.2V |
| 2 | Nominal capacity | 100 Ah | 14.6V cut-off capacity |
| 3 | Minimum capacity | >100Ah | |
| 4 | Normal voltage | 12.8V | Working voltage |
| 5 | Discharge cut-off voltage | 11.6V | |
| 6 | Charging voltage | 14.6V | |
| 7 | Internal Impedance | <10mΩ | |
| 8 | Consistent attributes | Charging ending( 14.6V fully charge) single cell voltage difference <50mV | Recorded is the instantaneous voltage difference at the end of the charge |
| 9 | Discharging ending (Voltage 11.6V) single cell voltage difference <50mV | Recorded is the instantaneous voltage difference at the end of the discharge | |
| 10 | Max. continuous charging current | 80A | |
| 11 | Max. continuous discharging current | 100A | |
| 12 | Peak discharging current | 150A (<20seconds) | |
| 13 | Working temperature | Charging: -30-50°C | 60±25%R.H. Bare Cell (Single cell storage humidity range ) |
| Discharging: -20-60°C | |||
| 14 | Storage temperature | Less than 12 months: -20~25 °C | 60±25%R.H. at the shipment state (Humidity range at shipment status) |
| Less tlian 3 months: -20~40 °C | |||
| Less than 7 days: -20~60 °C | |||
| 15 | Size/ mm | 280*176*190±0.5mm | ABS (Outer dimensions of shell including terminal) |
| 16 | Positive and negative | Terminal | Copper pillar |
| 17 | Net Weight | <12Kg | |
| 18 | Shipped goods Electricity | 50% electricity | |
| 19 | Package | Carton | |
| 20 | IP Class | IP65 | |
| 21 | |||
3. Battery Management System (BMS)
The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.
- Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
4. Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 3000 times @ 100% DOD
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
5. Application
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
