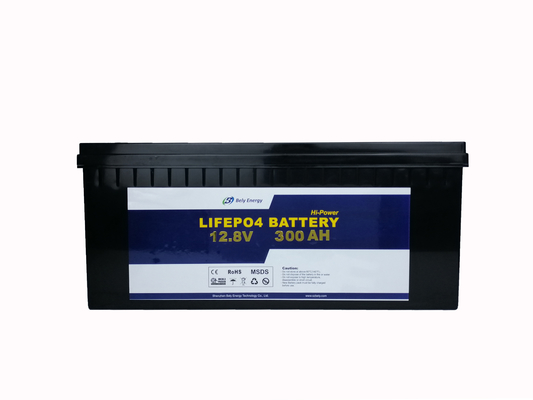

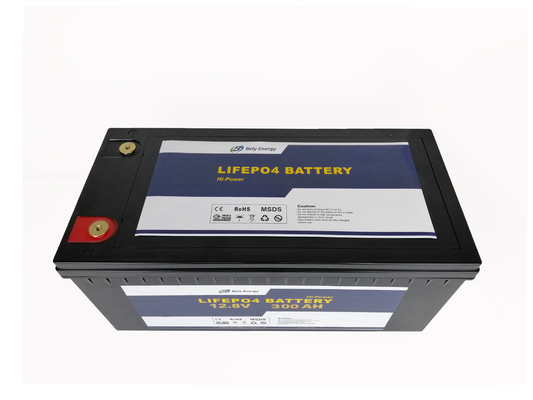

18650 Rechargeable Lifepo4 Battery 12V 300Ah RV Marine Lifepo4 Leisure Battery
  • 18650 Rechargeable Lifepo4 Battery 12V 300Ah RV Marine Lifepo4 Leisure Battery
  • 18650 Rechargeable Lifepo4 Battery 12V 300Ah RV Marine Lifepo4 Leisure Battery

18650 Rechargeable Lifepo4 Battery 12V 300Ah RV Marine Lifepo4 Leisure Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V300AH
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
300Ah/3840Wh
Dimension:
526mm X 235mm X 217mm/ 237mm
Weight:
32.5KGS
Cycle Life:
≥3000cycles
Warranty Time:
2 Years
Oem/odm:
Accepatable
Material:
ABS(anti-UV)
BMS:
Integrated & Inbuilt In The Battery
High Light:

18650 Rechargeable Lifepo4 Battery

,

Rechargeable Lifepo4 Battery 12V 300Ah

,

RV Marine Lifepo4 Leisure Battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

18650 Rechargeable Lithium Lifepo4 Battery 12V 300Ah For RV , Marine , Leisure



Description of LiFePO4 Battery

Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 3,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.

High security

Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high

temperature, short circuit, drop impact, piercing, etc.

Superior Safety

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

Specification of Lifepo4 Battery 12v 300AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 300Ah/3840Wh
Physical Dimension 526mm x 235mm x 217mm/ 237mm
Weight 32.5KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 80A
Max. Charging Current 150A
Recommended Max Continuous Discharging Current 120A
Max. Continuous Discharging Current 150A (Less than 25 mins)
Peak Discharging Current (≤20 sec.) 200A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Connector Copper pillar
Protection Class IP65
Battery Cells Type Prismatic

Battery Management System(BMS)

BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.



Battery Benefits

High discharge rate

Light weight

Long cycle life

No memory effect

High energy density

Pollution-free

High working voltage for single battery cells

Capacity, resistance, Voltage, platform time consistency is good

With short-circuit production function, safe and reliable

Good consistency, low self discharge

Applicantion

Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS



18650 Rechargeable Lifepo4 Battery 12V 300Ah RV Marine Lifepo4 Leisure Battery 0

Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
