RV Lithium Battery
>
|
| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3,ROHS |
| Model Number | BLY-LFP12V100AHBLH |

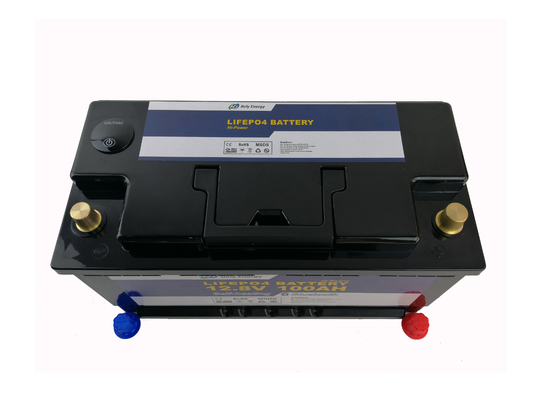

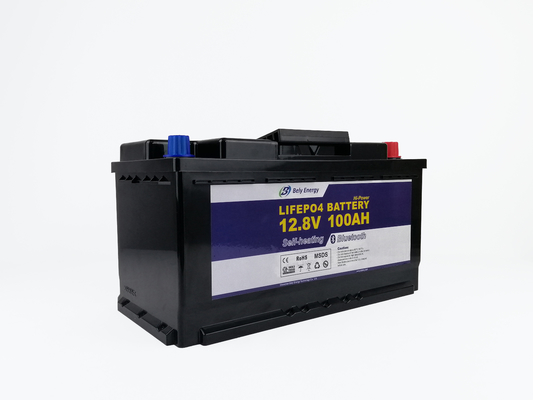

12V 100Ah RV Lithium Battery Battery 100Ah li ion battery With Bluetooth Heating For Scooter / Electric tricycle
Description of LiFePO4 Battery
Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Bluetooth Function
LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.
Heating Function
Charging Heating When Temperture <-1℃ Even to -30℃
Heated to 5℃ and Charge Well
(Temperature can be preseted and customized)
Specification of Lifepo4 Battery 12v 100AH
| Specification | Parameter | Remarks | |
| Nominal | Voltage | 12.8V | |
| Capacity | 100Ah/1280Wh | ||
| Physical | Dimension | 355mm x 175mm x 190mm | |
| Weight | 12KGS | ||
| Electrical | Working Voltage Range | 10~14.6V | |
| End of Charge Voltage | 14.4~14.6V | ||
| Recommended Charging Current | 50A | ||
| Max. Charging Current | 80A | ||
| Max. Continuous Discharging Current | 100A | ||
| Peak Discharging Current (≤20 sec.) | 150A | ||
| Others |
Charging Temperature Range | 0~55℃ | |
| Discharging Temperature Range | -20~60℃ | ||
| Storage Temperature Range | -20~60℃ | ||
| Cycle Life | ≥3000Cycles | ||
| Internal Impedance | ≤20mΩ | ||
| Battery Cells Type | Prismatic | ||
| Connector | Copper pillar | ||
| Material | ABS(anti-UV) | ||
| Color | Blak or customized | ||
| Protection Class | IP65 | ||
Battery Management System(BMS)
The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.
- Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
APPLICATION AREAS
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
LiFePO4 Battery Performance and Test Conditions
1. Standard test conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
2. Standard Charge/Discharge
Standard Charge: 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge: 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
Packaging & Delivery
Packaging Details 1pcs/carton box
Port: Shenzhen (Yantian/Shekou/Chiwan) or Hong Kong
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty. Enable to prolong.
