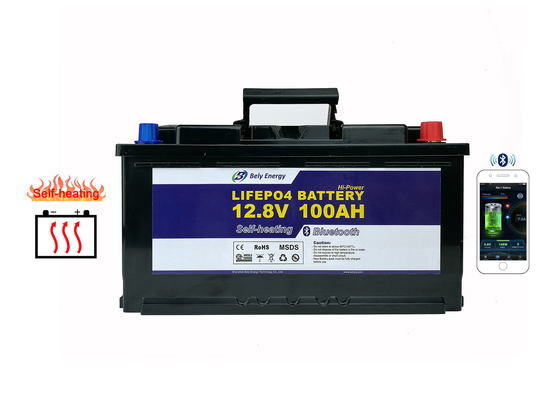

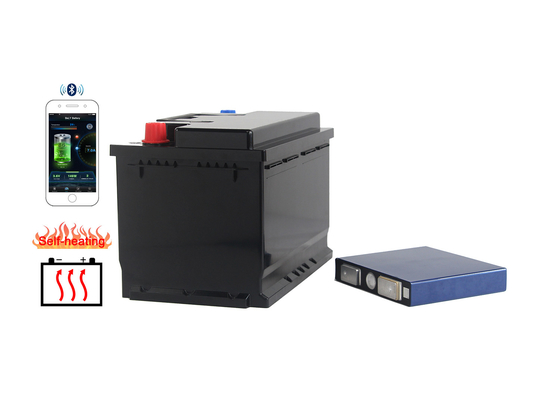

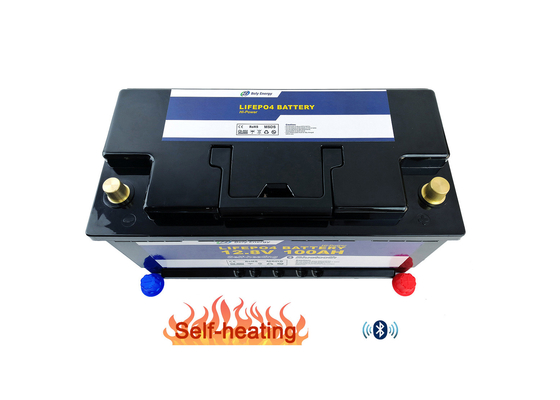

1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome
  • 1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome
  • 1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome
  • 1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome
  • 1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome

1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V100AHBLH
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah/1280Wh
Cycle Life:
≥3000cycles
Weight:
12KGS
Dimension:
355mm X 175mm X 190mm
Warranty Time:
2 Years
Protection Class:
IP65
Oem/odm:
Accepatable
Monitoring:
Bluetooth 4.0 With Smartphone APP
High Light:

1280Wh Bluetooth Lithium Battery

,

deep cycle battery for motorhome

,

100ah 12v lifepo4 deep cycle battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Best Lithium Ion Battery 12V 100Ah With Bluetooth Heating For Motorhome , Communication Station

Description of LiFePO4 Battery

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 355mm x 175mm x 190mm.

2. More than 3000 cycles @ 90% DOD.

3. High discharging current capacity, working well with most of inverters in the market.

4. Prismatic cells UL 1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS.

5. Patent Bluetooth connection, enable IOS & Android APP to monitor instant battery status.

6.Series & Parallel connections are available.

7.OEM & ODM service are availble.

Heating Function

Charging Heating When Temperture <-1℃ Even to -30℃
Heated to 5℃ and Charge Well
(Temperature can be preseted and customized)

1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome 0

EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.

Specification of Lifepo4 Battery 12v 100AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 100Ah/1280Wh

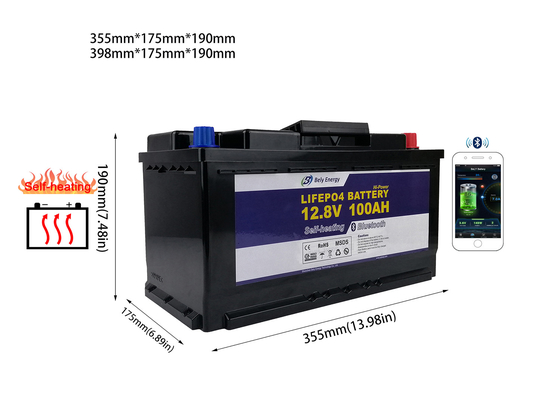

Physical Dimension 355mm x 175mm x 190mm
Weight 12KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 50A
Max. Charging Current 80A
Max. Continuous Discharging Current 100A
Peak Discharging Current (≤20 sec.) 150A
Others

Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Battery Cells Type Prismatic
Connector Copper pillar
Material ABS(anti-UV)

Battery Management System(BMS)

BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.



Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High cycles life time more than 3000 times @ 90% DOD

High max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge



APPLICATION AREAS

Suitable for RV, Caravan, Marine, Camper, Electric scooter, Golf Carts, Power wheels, Trolling motor, Tool trailer, Backup power supply, Solar, off-grid, etc.



1280Wh Bluetooth Lithium Battery 100ah 12v Lifepo4 Deep Cycle Battery For Motorhome 1

Install the LiFePO4 battery

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.



Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



Caution:

- Do not store at above 60℃(140℉);

- Do not dispose of the battery in fire or water;

- Do not expose to high temperature, disassemble or short circuit;

- New Battery pack must be fully charged before use.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.



Why choose us:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
