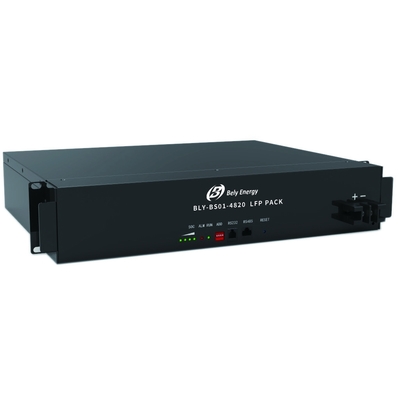

LiFePO4 Telecom Battery 48V20Ah With RS485 Communication With LED Indicators
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack BLY-LFP48V20AH manufactured by SHENZHEN BELY ENERGY TECHNOLOGY CO.,LTD, describes the type, performance, technical characteristics, warning and caution of the battery pack.
2. Battery Specification(@ 25±5℃)
|
Item Description |
Deep cycle rechargeable 48V LiFePO4 battery |
|
|
Model Number |
BLY-EB012 |
|
|
Standard Voltage |
48V |
|
|
Nominal capacity |
20AH(25℃,0.2C) |
|
|
POWER |
1024WH |
|
|
Volume Power |
74.8Wh/dm³ |
|
|
Weight Power |
60.6Wh/kg |
|
|

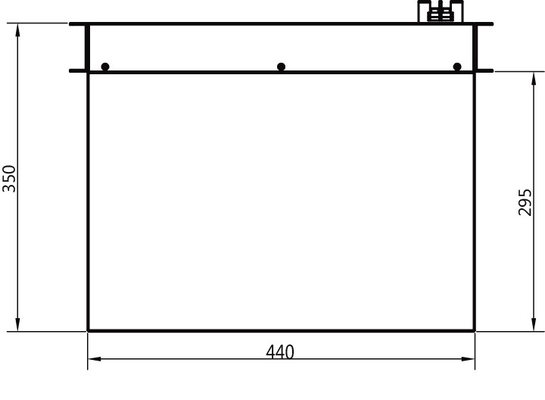

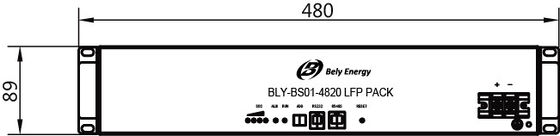

Dimension |
Width |
440m |
|
Height |
89mm(2U) |
|
|
Depth |
350mm |
|
|
Weight |
16.9kg |
|
|
Voltage range |
43.2～57.6V |
|
|
Charge voltage range |
56.0～57.6V |
|
|
Maximum continuous discharge current |
20A |
|
|
Maximum continuous charge current |
20A |
|
|
Communication Interface (optional) |
Modbus/SNMP/TACP |
|
|
Other functions (optional) |
Display/Anti-theft/trunk contacts |
|
|
Charging temperature |
0℃～+55℃ |
|
|
Discharge temperature |
-20℃～+60℃ |
|
|
Storage environment |
-20℃～+60℃ |
|
|
Protection Level |
IP20 |
|
3.Description of LiFePO4 Battery
Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 3,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
4. Period of Warranty
The period of warranty is 60 months from the date of shipment. BeLY guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
5. Mass production
