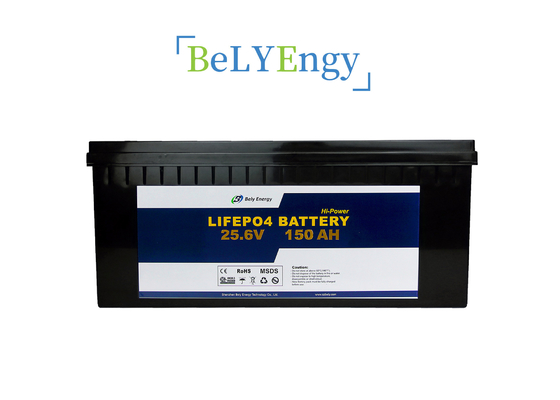

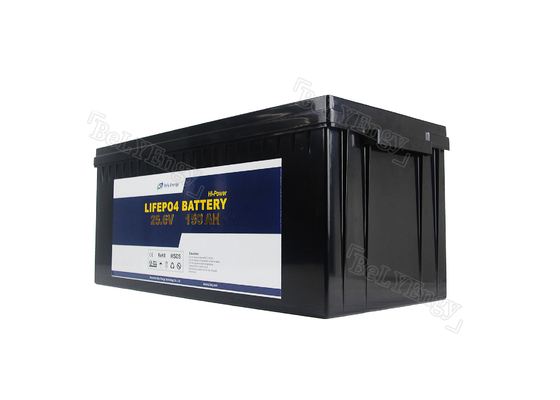

Yacht Marine Leisure 24 Volt Lithium Battery Pack 3840Wh
  • Yacht Marine Leisure 24 Volt Lithium Battery Pack 3840Wh
  • Yacht Marine Leisure 24 Volt Lithium Battery Pack 3840Wh
  • Yacht Marine Leisure 24 Volt Lithium Battery Pack 3840Wh

Yacht Marine Leisure 24 Volt Lithium Battery Pack 3840Wh

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-A02-24V150AH
Product Details
Type:
LiFePO4
Nominal Voltage:
25.6V
Nominal Capacity:
150Ah/3840Wh
Cycle Life:
>5000cycles
Weight:
40KGS
Dimension:

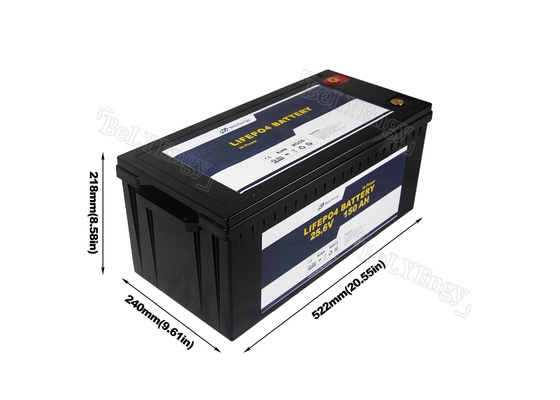

522mm X 240mm X 218mm
Warranty Time:
2 Years
Material:
ABS(anti-UV)
Oem/odm:
Accepatable
Protection Class:
IP65
High Light:

Yacht 24 Volt Lithium Battery 3840Wh

,

Yacht 24 Volt Lithium Batteries 3840Wh

,

Yacht Marine Battery Pack 3840Wh

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

24 Volt Lithium Battery Pack 24V 150Ah For Communication Station , Yacht / Marine , Leisure

Description of LiFePO4 Battery

1. More than 5000 cycles and 2 years long time.

2. More rechargeable time, longer life time, economic and environmental protection.

3. Light weight and portable.

4. LIFEPO4 material more safe.

5. Inbuilt BMS multiple security protection.

BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

Yacht Marine Leisure 24 Volt Lithium Battery Pack 3840Wh 0

Specification of Lifepo4 Battery 24V 150AH

Specification Parameter Remarks
Nominal Voltage 25.6V
 Capacity 150Ah/3840Wh
Physical Dimension 522mm x 240mm x 218mm
Weight 40KGS
Electrical Discharge Voltage  25.6V
Charge Voltage 25.6~29.4V
Charging Current 100A
Discharging Current 150A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥5000Cycles
Internal Impedance ≤50mΩ
Battery Cells Type Prismatic
Connector Copper pillar
Material Black or customized
Life time @+25℃ 10 years

Battery Management System(BMS)

BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.



APPLICATION AREAS

Our lithium iron phosphate batteries can be used in the following areas: Home energy storage system, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY loud speaker, air pump, fish finder, golf car, trolling motor, motorhome / RV & camper, Houseboat, Travel Trailer, Dump Trailer and more.



Yacht Marine Leisure 24 Volt Lithium Battery Pack 3840Wh 1

Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

Hign max continuous discharging current

One to one replaceable with lead acid battery

Low self-discharge



Install the LiFePO4 battery

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.



Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
