| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3,ROHS |
| Model Number | BLY-A02-24V180AH |

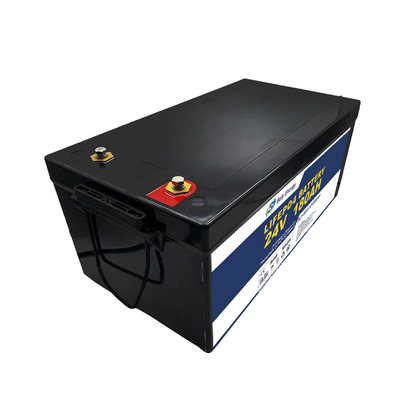

Bely The Strongest Momentum 24V 180Ah LiFePO4 Battery For Communication station / Submarine
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Description of LiFePO4 Battery
1. High performance traction/storage battery
2. High cycles life time more than 5000 times @ 25% and 2 years long guarantee time.
3. More rechargeable time, longer life time, economic and environmental protection.
4. Light weight and portable.
5. LIFEPO4 material more safe.
6. Inbuilt BMS multiple security protection.
7. Low self-discharge
Specification of Lifepo4 Battery 24V 180AH
| Specification | Parameter | Remarks | |
| Nominal | Voltage | 25.6V | |
| Capacity | 180Ah/4608Wh | ||
| Physical | Dimension | 522mm x 267mm x 223mm | |
| Weight | Around 50KGS | ||
| Electrical | Discharge Voltage | 25.6V | |
| Charge Voltage | 25.6~29.4V | ||
| Charging Current | 150A | ||
| Discharging Current | 150A | ||
| Equalizing Current | 120A | ||
| Others | Charging Temperature Range | 0~55℃ | |
| Discharging Temperature Range | -20~60℃ | ||
| Storage Temperature Range | -20~60℃ | ||
| Cycle Life | ≥5000@25 | ||
| Internal Impedance | <20mΩ | ||
| Battery Cells Type | Prismatic | ||
| Connector | Copper pillar | ||
| Mateial | ABS(anti-UV) | ||
| Life time @+25℃ | 10 years | ||
| Warranty |
2 Years Remarks Warranty time prolong from 2 years to 5 years: Price increase 20% Warranty time prolong from 2 years to 7 years: Price increase 35%. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse. |
||
Information
BATTERY MANAGEMENT SYSTEM
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.
BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
waterproof
more than a layer of protection more than a rest assured
Application of LiFePO4 Battery
UPS, Solar, Wind, Mobile generator, Back up power
Solar power bank, Solar LED lighting, Solar street light
Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
Electric drill, electric saw, lawn mower and so on
Remote control cars, boat, aircraft, toys
Medical devices, equipment and portable equipment
Bluetooth, GPS, Wearable device, Power supply, Wireless
All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
FAQ
Q1. What is the biggest difference between your battery and other suppliers:
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 2 years warranty. Enable to prolong.
Q4. Is this LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
