| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3,ROHS |
| Model Number | BLY-A02-24V200AH |

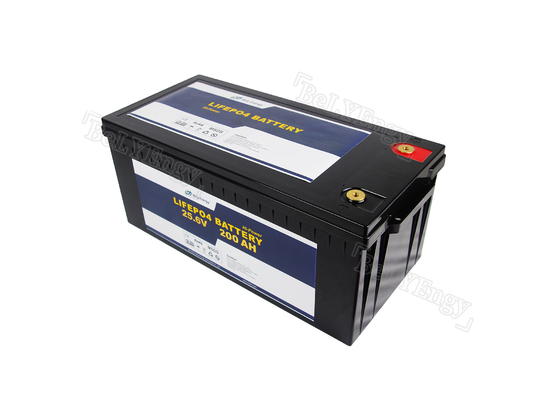

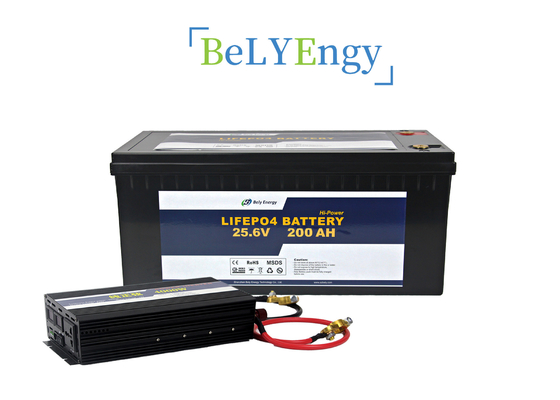

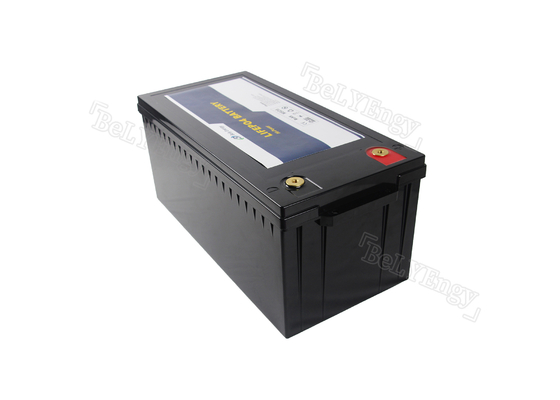

2021 New Technology 24v 200AH Battery Packs Prismatic Completely New Grade A For RV , Marine , Refuge Boat
Description of LiFePO4 Battery
1. More than 5000cycle time and 2 years long guarantee time.
2. More rechargeable time, longer life time, economic and environmental protection.
3. LIFEPO4 material more safe.
4. Inbuit BMS multiple security protection.
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.
Specification of Lifepo4 Battery 24V 200AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 25.6V |
| Capacity | 200Ah/5120Wh | |
| Physical | Dimension | 522mm x 267mm x 220mm |
| Weight | 60KGS | |
| Electrical | Discharge Voltage | 25.6V |
| Charge Voltage | 25.6~29.4V | |
| Charging Current | 150A | |
| Discharging Current | 150A | |
| Others | Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ | |
| Storage Temperature Range | -20~60℃ | |
| Cycle Life | ≥5000Cycles | |
| Internal Impedance | ≤50mΩ | |
| Battery Cells Type | Prismatic | |
| Connector | Copper pillar | |
| Material | Black or customized | |
| Life time @+25℃ | 10 years | |
Battery Management System(BMS)
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
APPLICATION AREAS
Our lithium iron phosphate batteries can be used in the following areas: Home energy storage system, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY loud speaker, air pump, fish finder, golf car, trolling motor, motorhome / RV & camper, Houseboat, Travel Trailer, Dump Trailer and more.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 5000 times @ 25
Hign max continuous discharging current
One to one replaceable with lead acid battery
Low self-discharge
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days;
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty.
