24V LiFePo4 Battery
>
|
| Place of Origin | China |
| Brand Name | Bely |
| Certification | CE, MSDS, UN38.3,ROHS |
| Model Number | BLY-LFP-24V40AH |

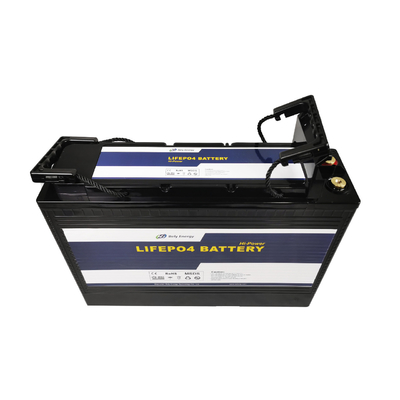

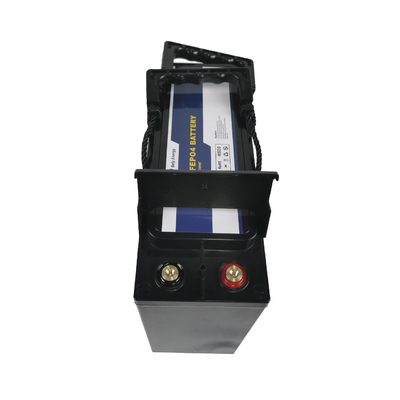

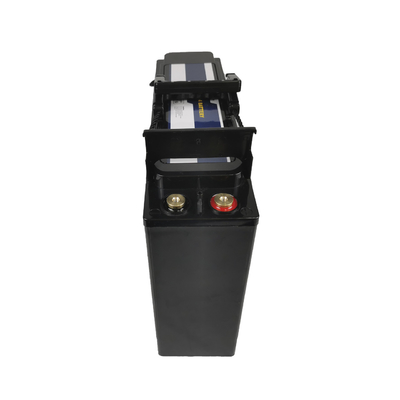

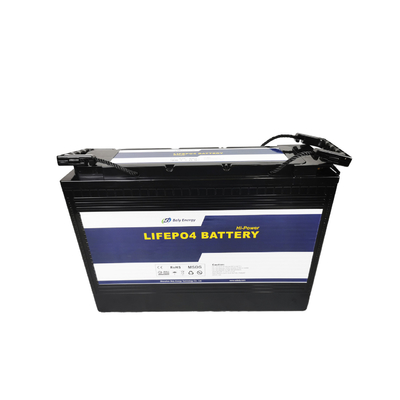

Bely Used For Solar Syste 24V 50Ah Deep Cycle Battery 24V LiFePO4 Battery For Yachit / RV / Medical
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
Product Performance Description
Information
BATTERY MANAGEMENT SYSTEM
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
Protection of the cell against under voltage by switching off the load in good time.
- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.
- Shutting down the system in the event of excess temperature.
- Charging of the battery is stopped in case of under temperature.
EASY REPLACEMENT THE EXISTING BATTERY
The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.
BATTERY CHARGING
Use the suitable lithium battery charger. Waiting until the battery is fully charged.
PERFORMANCE / EFFICIENCY
A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.
waterproof
more than a layer of protection more than a rest assured
The terminal has a removable waterproof cover to protect it from water on rainy days, and easy to stack.
Specification
| Model | BLY-LFP24V40AH |
| Nominal Voltage | 25.6V |
|
Nominal Capacity |
40Ah |
| Usable Capacity | 1024Wh |
| Dimension | 275mm(L)*106mm(W)*223mm(H) |
| Weight | 10kgs |
| Cycle Time | >2000@DOD80% |
| Working Temperature |
-20~60℃
|
| Discharge Voltage | 25.6V |
| Charge Voltage | 25.6~29.4V |
| Internal Impedance | <20mΩ |
| Charge Current | 40A |
| Discharge Current | 60A |
| Life Time @+25℃ | 10Years |
| Protection Class | IP65 |
| Mateial | ABS(anti-UV) |
| BMS | Integrated & inbuilt in the battery |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
APPLICATION Of 24V LiFePO4 Battery
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Packaging & Delivery
Packaging Details 1pcs/carton box
Port: Shenzhen (Yantian/Shekou/Chiwan) or Hong Kong
LiFePO4 Battery Performance and Test Conditions
1. Standard test conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
2. Standard Charge/Discharge
Standard Charge: 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge: 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
FAQ:
Q1. What is the biggest difference between your battery and other suppliers:
A: Safest with longer lifespan.
Q2. How about your LiFePO4 Battery delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 2 years warranty. Enable to prolong.
Q4. Is this LiFePO4 Battery safe?
A: Passed the overcharge, over discharge, over temp
