Place of Origin: | China |
Brand Name: | Bely |
Certification: | CE, MSDS, UN38.3,ROHS |
Model Number: | BLY-LFP-24V50AH |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 7-14 days for samples, 35-60days fpr mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 100000pcs per month |
Type: | LiFePO4 | Nominal Voltage: | 25.6V |
---|---|---|---|
Nominal Capacity: | 50Ah/1280Wh | Cycle Life: | >2000cycles |
Weight: | 12KGS | Dimension: | 395mm X 110mm X 286mm |
Warranty Time: | 2 Years | Material: | ABS(anti-UV) |
Oem/odm: | Accepatable | Protection Class: | IP65 |
High Light: | 24V 50000mAH Battery Bank 1280Wh,24V 50000mAH Batteries Bank 1280Wh,24V 50000mAH Battery Banks 1280Wh |

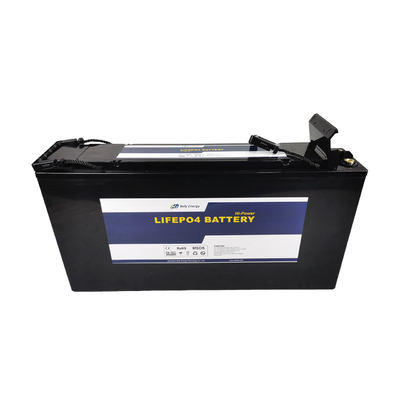

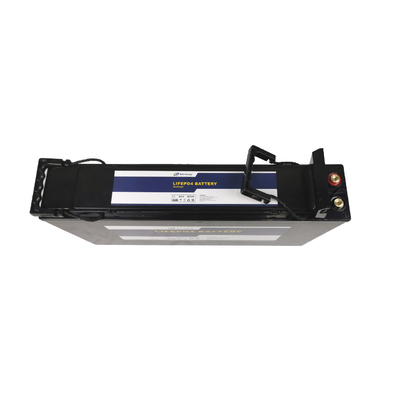

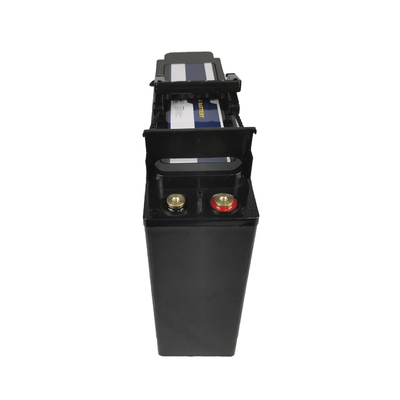

2 Years Warranty 24v 50AH Lifepo4 Cell For Consumer Electronics , Solar Energy System
Description of LiFePO4 Battery
1. Very suitable for RV and replace the traditional lead acid battery with battery size: 395mm x 110mm x 286mm.
2. More than 2000 cycles @ 80% DOD.
3. High discharging current capacity, working well with most of inverters in the market.
4. Prismatic cells UL 1642& UN38.3 & ICE62619 certified, packs CE & UN38.3 & MSDS.
5.Series & Parallel connections are available.
6.OEM & ODM service are availble.
Period of Warranty
The period warranty 24 months from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
Specification of Lifepo4 Battery 24V 40AH
Specification | Parameter | Remarks |
Nominal | Voltage | 25.6V |
Capacity | 50Ah/1280Wh | |
Physical | Dimension | 395mm x 110mm x 286mm |
Weight | 12KGS | |
Electrical | Discharge Voltage | 25.6V |
Charge Voltage | 25.6~29.4V | |
Charging Current | 40A | |
Discharging Current | 60A | |
Others | Charging Temperature Range | 0~55℃ |
Discharging Temperature Range | -20~60℃ | |
Storage Temperature Range | -20~60℃ | |
Cycle Life | >2000Cycles | |
Internal Impedance | <20mΩ | |
Battery Cells Type | Prismatic | |
Connector | Copper pillar | |
Material | Black or customized | |
Life time @+25℃ | 10 years |
Battery Management System(BMS)
The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.
APPLICATION AREAS
Suitable for RV, Caravan, Marine, Camper, Electric scooter, Golf Carts, Power wheels, Trolling motor, Tool trailer, Backup power supply, Solar, off-grid, etc.
Battery Benefits
High performance traction/storage battery
Integrated (BMS) battery management system
Safe lithium technology (LiFePO4)
High cycles life time more than 2000 times @ 80% DOD 25℃
Hign max continuous discharging current
Light weight
One to one replaceable with lead acid battery
Low self-discharge
Install the LiFePO4 battery
Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.
In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.
Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.
Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.
Important instructions
Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.
▪ Only use the battery for the application for which it is intended.
▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.
▪ Installation and maintenance may only be carried out by qualified specialists.
▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.
▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.
▪ Pay attention to proper assembly.
▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).
▪ Always keep the battery dry and clean.
▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.
▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.
▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).
Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty.
