40 Amp Hour 24V LiFePo4 Battery Rechargeable Lithium Batteries For Sailboats
  • 40 Amp Hour 24V LiFePo4 Battery Rechargeable Lithium Batteries For Sailboats
  • 40 Amp Hour 24V LiFePo4 Battery Rechargeable Lithium Batteries For Sailboats
  • 40 Amp Hour 24V LiFePo4 Battery Rechargeable Lithium Batteries For Sailboats
  • 40 Amp Hour 24V LiFePo4 Battery Rechargeable Lithium Batteries For Sailboats

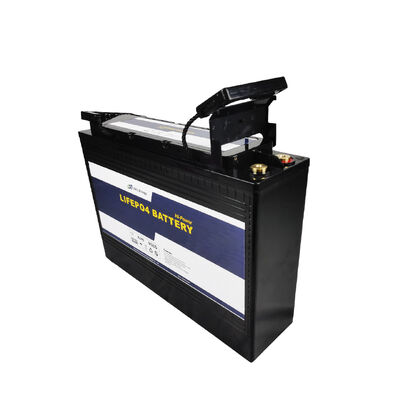

40 Amp Hour 24V LiFePo4 Battery Rechargeable Lithium Batteries For Sailboats

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP-24V40AH
Product Details
Type:
LiFePO4
Nominal Voltage:
25.6V
Nominal Capacity:
40Ah/1024Wh
Cycle Life:
>2000cycles
Weight:
10KGS
Dimension:
275mm X 106mm X 223mm
Color:
Black Or Customized
Warranty Time:
2 Years
Oem/odm:
Accepatable
Protection Class:
IP65
High Light:

40 Amp Hour 24V LiFePo4 Battery

,

1024Wh 24V LiFePo4 Battery

,

Rechargeable Lithium Batteries For Sailboats

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

Rechargeable Li Ion Battery Pack 24v 40AH For Yacht , Home Storage , Camping Car

Description of LiFePO4 Battery

Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 0,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.

Period of Warranty

The period warranty 24 months from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

Specification of Lifepo4 Battery 24V 40AH

Specification Parameter Remarks
Nominal Voltage 25.6V
 Capacity 40Ah/1024Wh
Physical Dimension 275mm x 106mm x 223mm
Weight 10KGS
Electrical Discharge Voltage  25.6V
Charge Voltage 25.6~29.4V
Charging Current 30A
Discharging Current 40A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life >2000Cycles
Internal Impedance <20mΩ
Battery Cells Type Prismatic
Connector Copper pillar
Material ABS(anti-UV)
Life time @+25℃ 10 years

Battery Management System(BMS)

The battery management system (BMS) built into each battery ensures that the battery switch off in the event of under voltage or overload and automatically again turns on as soon as the problem is resolved.

- Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.



APPLICATION AREAS

Suitable for RV, Caravan, Marine, Camper, Electric scooter, Golf Carts, Power wheels, Trolling motor, Tool trailer, Backup power supply, Solar, off-grid, etc.



40 Amp Hour 24V LiFePo4 Battery Rechargeable Lithium Batteries For Sailboats 0

Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

Hign max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge



Install the LiFePO4 battery

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.



Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
