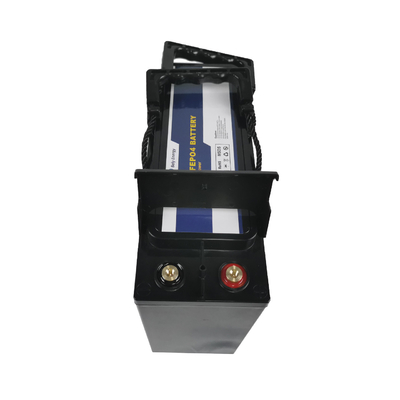

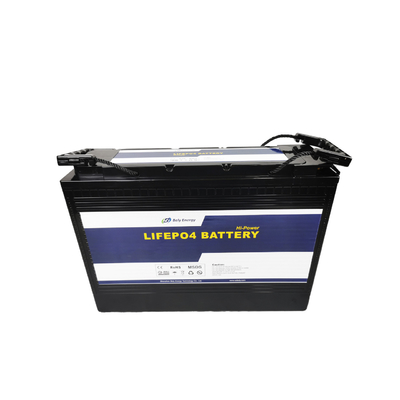

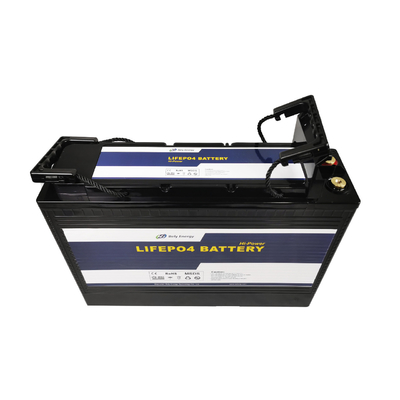

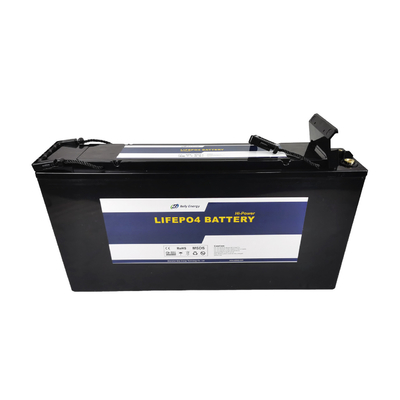

RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery
  • RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery
  • RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery
  • RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery
  • RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery

RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP-24V80AH
Product Details
Type:
LiFePO4
Nominal Voltage:
25.6V
Nominal Capacity:
80Ah
Usable Capscity:
2048Wh
Cycle Life:
>2000@ DOD 80%
Weight:
Around 17KGS
Dimension:
552mm(L) X 110mm(W) X 240mm(H)
Oem/odm:
Accepatable
Mateial:
ABS(anti-UV)
BMS:
Integrated & Inbuilt In The Battery
High Light:

Camping Car 24V LiFePo4 Battery

,

RV 24V LiFePO4 Battery Lightweight

,

80 Amp hour Lithium Battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

24V LiFePO4 Battery 24V 80Ah Lithium Battery For RV camping car



Are you looking for the the best LiFePO4 battery?

Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and
offers a higher charge/discharge cycles, about 2,000 cycles at 80% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.





Specification of Lifepo4 Battery 12v 150AH



Model BLY-LFP24V80AH
Nominal Voltage 25.6V

Nominal Capacity

80Ah
Usable Capacity 2048Wh
Dimension 552mm(L)*110mm(W)*240mm(H)
Weight 17kgs
Cycle Time >2000@DOD80%
Working Temperature
-20~60

Discharge Voltage 25.6V
Charge Voltage 25.6~29.4V
Internal Impedance <20
Charge Current 40A
Discharge Current 60A
Life Time @+25 10Years
Protection Class IP65



2.1 Information

BATTERY MANAGEMENT SYSTEM

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.

Protection of the cell against under voltage by switching off the load in good time.

- Protection of the cell against over voltage by reducing the charging current or switching off the charging process.

- Shutting down the system in the event of excess temperature.

- Charging of the battery is stopped in case of under temperature.

2.2 EASY REPLACEMENT THE EXISTING BATTERY

The dimensions of the housing are identical with the most common AGM, lead acid or GEL batteries. With optionally available round poles can also use existing pole, terminals can be reused. An exchange the battery holder or a change the loading structure is not necessary.

2.3 BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

2.4 PERFORMANCE / EFFICIENCY

A BeLY LiFePo4 battery can do more than 96% of the energy made available directly to save. A 100% utilization of the existing capacity takes place with the same output voltage.



APPLICATION AREAS

The areas of application of this battery are specifically for the stationary or mobile area.

Motohomes, caravans and RV

Photovoltaics, solar systems and renewable energies

High performance traction/storage battery

Fishing, electric boat motors and sonar

Mobile power supply, camping and leisure

Emergency power supply/UPS



RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery 0

Packaging & Delivery

Packaging Details   1pcs/carton box

Port: Shenzhen (Yantian/Shekou/Chiwan) or Hong Kong

RV Camping Car 24V LiFePO4 Battery Lightweight 80 Amp Hour Lithium Battery 1

Install the LiFePO4 battery

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.



Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty. Enable to prolong
