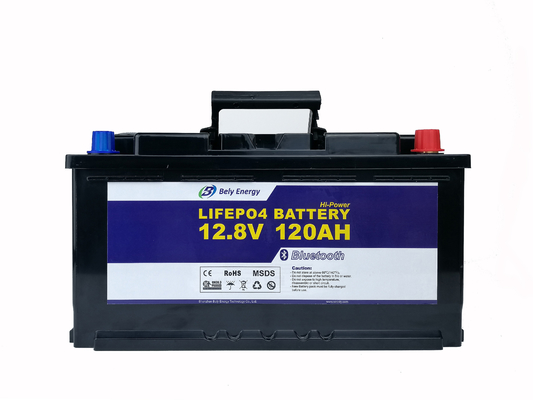

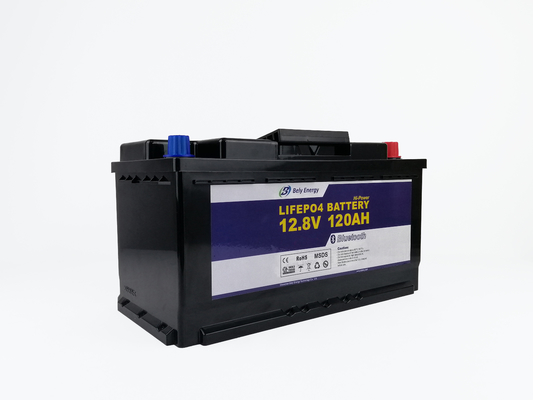

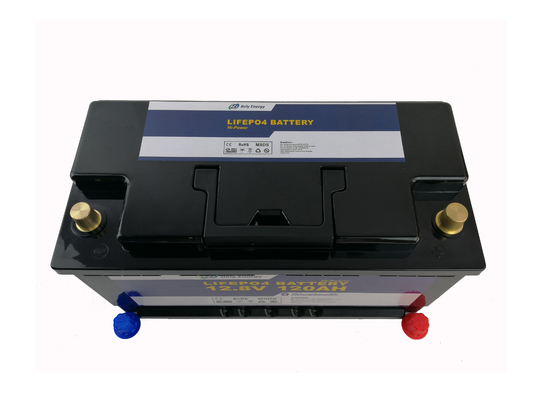

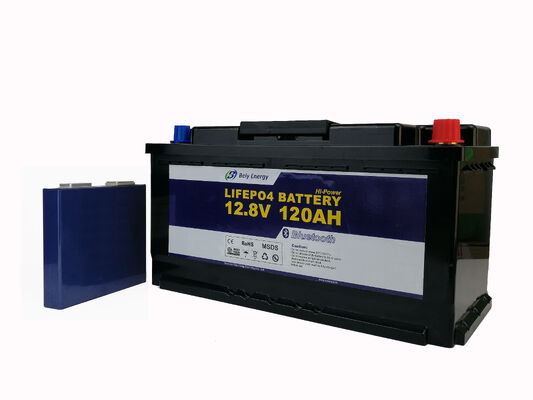

Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery
  • Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery
  • Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery
  • Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery
  • Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery

Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery

Place of Origin China
Brand Name Bely
Certification CE, MSDS, UN38.3,ROHS
Model Number BLY-LFP12V120AHBL
Product Details
Type:
LiFePO4
Nominal Voltage:
12.8V
Nominal Capacity:
120Ah/1536Wh
Weight:
14KGS
Dimension:
355mm X 175mm X 190mm
Color:
Black Or Customized
Cycle Life:
≥3000cycles
Warranty Time:
2 Years
Monitoring:
Bluetooth 4.0 With Smartphone APP
Oem/odm:
Accepatable
High Light:

120Ah Smart Lithium Ion Battery

,

120000mAh smart lithium ion battery

,

12V 120Ah electric tricycle battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
7-14 days for samples, 35-60days fpr mass production
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
100000pcs per month
Product Description

2021 New Technology 12V 120Ah Smart Lithium Ion Battery With Bluetooth For Refuge Boat , Home Appliance

Description of LiFePO4 Battery

1. Very suitable for RV and replace the traditional lead acid battery with battery size: 355mm x 175mm x 190mm.

2. More than 3000@90% DOD 25℃.

3. High discharging current capacity, working well with most of inverters in the market.

4. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.

5.Patent Bluetooth connection, enable IOS & Android APP to monitor instant battery status.

6. Series & Parallel connections are available.

7. OEM & ODM service are availble.

Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery 0

BATTERY CHARGING

Use the suitable lithium battery charger. Waiting until the battery is fully charged.

Bluetooth Function

LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion application to deliver more power and extend long life. Also built with bluetooth function allow you to read battery status freely anytime.



Specification of Lifepo4 Battery 12v 120AH

Specification Parameter Remarks
Nominal Voltage 12.8V
 Capacity 120Ah/1536Wh
Physical Dimension 355mm x 175mm x 190mm
Weight 14KGS
Electrical Working Voltage Range 10~14.6V
End of Charge Voltage 14.4~14.6V
Recommended Charging Current 60A
Max. Charging Current 100A
Max. Continuous Discharging Current 100A
Peak Discharging Current (≤20 sec.) 150A
Others Charging Temperature Range 0~55℃
Discharging Temperature Range -20~60℃
Storage Temperature Range -20~60℃
Cycle Life ≥3000Cycles
Internal Impedance ≤20mΩ
Battery Cells Type Prismatic
Connector Copper pillar
Material ABS(anti-UV)
Charging mode CCCV/IU
Life Time Designed@+25℃ 10 Years
Protection Class IP65

Period of Warranty

The period of warranty is 2 years from the date of shipment. Maximum guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.



BMS

BATTERY MANAGEMENT SYSTEM

The battery Management system (BMS) installed in every battery ensures that the battery in the event of under voltage or overload switches off and automatically again turns on as soon as the problem is resolved.



Application of LiFePO4 Battery

UPS, Solar, Wind, Mobile generator, Back up power
Solar power bank, Solar LED lighting, Solar street light
Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
Electric drill, electric saw, lawn mower and so on
Remote control cars, boat, aircraft, toys
Medical devices, equipment and portable equipment

Bluetooth, GPS, Wearable device, Power supply, Wireless

Mobile 12V 120Ah Smart Lithium Ion Battery Electric Tricycle Battery 1

Battery Benefits

High performance traction/storage battery

Integrated (BMS) battery management system

Safe lithium technology (LiFePO4)

High cycles life time more than 3000 times @ 90% DOD 25℃

Hign max continuous discharging current

Light weight

One to one replaceable with lead acid battery

Low self-discharge



Install the LiFePO4 battery

Lithium LiFePo4 batteries are heavy. Make sure it is adequate and safe attach and always use the appropriate transport equipment.

In an accident unsecured, batteries could become a projectile! Always take carefully with lithium batteries.

Make absolutely sure that the LiFePO4 battery is not connected with reversed polarity.

Should the battery be connected incorrectly, the BMS electronics will be irreparably damaged and must be replaced with a new BMS board. This is not a warranty case.

Important instructions

Do not open the LiFePO4 battery without consulting the dealer. Unauthorized opening of the battery voids the manufacturer's warranty.

▪ Only use the battery for the application for which it is intended.

▪ Do not short-circuit the LiFePO4 battery. The cable connections to the consumers must go through a backup to be protected.

▪ Installation and maintenance may only be carried out by qualified specialists.

▪ Do not expose to permanent direct sunlight. Protect from the effects of heat. Temperatures above +60 ° C can damage the battery.

▪ Use only compatible chargers. The battery is in a longer storage of all disconnect devices.

▪ Pay attention to proper assembly.

▪ Avoid damage of any kind, for example by falling, drilling, etc. (Risk of short circuit).

▪ Always keep the battery dry and clean.

▪ Note the plus (+) and minus (-) markings on the LiFePO4 battery and the device and pay attention to the correct polarity.

▪ The cycle capacity may vary due to the change in the working temperature and the charge and discharge rate differ from the nominal capacity.

▪ Suitable for parallel connection maximum four batteries (If need series connection, the BMS should be customized with higher cost).

Before connecting, bring to the same charge level. Batteries from different manufacturers or different types should not be interconnected.



Warning & Tips

1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;

2. When the battery run out of power, please charge it within 15 days;

3. Please use the original or recommended charger for this battery;

4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;

5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.

6. Please far away from children or pets.

FAQ:

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. Do you have any MOQ limit?

A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q3. How to proceed with an order?

A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.



Q4. Is it OK print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Which certificates do you have?

A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.



Q6. How about warranty?

A. 2 years warranty.
