Place of Origin | Guangdong, China |
Brand Name | BELY |
Certification | UL, CE, UN38.3, ROHS, MSDS |
Model Number | LFP-12V180AHBL-Comms |

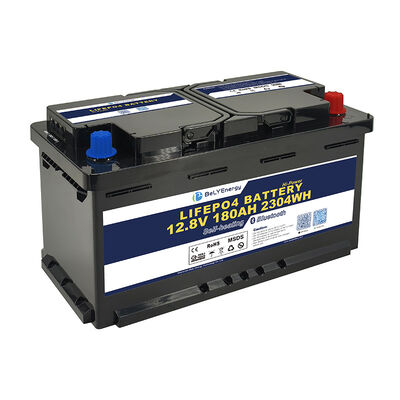

Specification of Lifepo4 Battery 12v 180AH in Comms
Specification | Parameter | Remarks |
Nominal | Voltage | 12.8V |
Capacity | 180Ah/2304Wh | |
Physical | Dimension | 355mm x 175mm x 190mm |
Weight | 17KGS | |
Electrical | Working Voltage Range | 10~14.6V |
End of Charge Voltage | 14.4~14.6V | |
Recommended Charging Current | 100A | |
Max. Charging Current | 200A | |
Max. Continuous Discharging Current | 200A | |
Peak Discharging Current (≤10 sec.) | 260A | |
Others | Charging Temperature Range | 0~60℃ |
Discharging Temperature Range | -20~60℃ | |
Storage Temperature Range | -10~45℃ | |
Cycle Life | ≥5000Cycles | |
Internal Impedance | ≤10mΩ | |
Color | Black or customized | |
Battery Cells Type | Prismatic | |
Connector | Copper pillar | |
Charging mode | CCCV/IU | |
Life Time Designed@+25℃ | 10 Years | |
Protection Class | IP65 |
Battery Management System(BMS)
Inbulit BMS provide strong protection and keep battery safely to use.
●Overvoltage & undervoltage
●Over-temperature & under-temperature
●Unbalanced cell voltages
●Overload due to excessive current
●Short circuit outside the battery
Battery Management System (BMS) with Bluetooth monitoring
With intelligent BMS and Bluetooth communication, BeLY bluetooth series LiFePO4 battery ensure to check and monitor the battery voltage, current and temperature events to maximize battery safety, performance and life.
Intelligent Self-heating Function
Integrated strong heating film with the highest possible effectiveness and efficiency (extremely fast and completely even heating of all cells). The integrated heating film starts at temperatures below 0°C when a charging current 10A is applied. No battery discharge due to the integrated heater.
Power On/Off Button:
There is an ON/OFF switch on the battery side which can be used to switch the battery on or off. If the battery is not used for a long period of time (e.g. in winter storage), it should also be switched off to prevent consumers from continuing to discharge the battery.
Communication
Each 12V battery in comms has 2 communication ports. These ports utilize the CAN (Controller Area Network) and RS485 ( Recommended Standard 485 ) protocol. CAN, RS485 and Bluetooth enable data transmission to meet the needs of different usage scenarios and improve the efficiency, reliability, and safety of the system.
Key Features:
1. Communicate with external devices like LCD display and inverters.
2. Support batteries communication in parallel connection.
3. Convenient for manufacturer or professional engineer to debug or service.
LiFePO4 Battery Benefits
Intelligent BMS Inbulit
The BMS permanently protects the individual cells and the entire battery against over/under voltage, over/under temperature, overload and short circuit (automatic shutdown without damage). The BMS effectively prevents the battery from failing prematurely due to external influences or incorrect use.
Temperature Tolerant
Bely batteries can handle a wide variety of conditions and are even 2.5x more efficient at low temperatures than lead-acid while being able to safely operate up to 65°C.
High Efficiency
Bely Batteries provide 100% of their rated capacity regardless of the rate of discharge, which mean we can discharge the battery entirely and obtain thousands of cycles.
Lightweight
Bely batteries are super lightweight due to using high energy density new grade A prismatic cells. They are 60% lighter than lead acid batteries, which is simple for moving and installing.
Long Cycle Life
Bely batteries provide up to 10 times longer life than lead acid batteries, and they still provide 80% of the rated capacity after 3,500 cycles without decreasing in performance . All of Bely Batteries are back up with 5 years warranty.
Eco-Friendly & Safe
Bely batteries are the ultimate clean energy. No gassing, no fumes, and no pollution. Moreover, lithium batteries are made of recycled materials, meaning they are disposable in an eco-friendly way. Enjoy reliable power, while protecting the environment, using these non-hazardous batteries.
Low Self-Discharge Rate
Bely batteries have a low self-discharge rate of 3% a month and no memory effects , which means that we can store the batteries for extended periods without the need for frequent charging.
Fast Charging
Bely batteries can recharge much faster than lead acid batteries, which allow us to get reliable power quicker. Lithium battery is recommended to recharge in 2 or more hours for longevity.
Easy Installation
Bely batteries are designed as a drop-in-replacement for lead acid batteries. The dimension of our batteries are the same as the dimension of lead acid batteries with much lighter weight.
