Place of Origin: | China |
Brand Name: | BeLY |
Certification: | UL, CE, MSDS, ROHS, UN38.3 |
Model Number: | LFP26148129-50Ah |
Minimum Order Quantity: | 1000 |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Carton or Customized |
Delivery Time: | 7 days for samples; 4~6weeks for mass production |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Material: | LiFePo4 | Color: | Blue |
---|---|---|---|
Nominial Capacity: | 50Ah | Type: | Prismatic |
Internal Resistance: | ≤1.0mΩ (AC Impedance, 1000Hz) | Nominal Voltage: | 3.2V |
Max Charge Voltage: | 3.65± 0.05V | Cut-off Voltage: | 2.0±0.05V |
Standard Charge And Discharge Current: | 0.5C (25A) | Max Continuous Charge Current: | 1C |
Max Pulse Charge Current: | 2C≤10s | Max Continuous Discahrge Current: | 1C |
Max Pulse Discharge Current: | 3C≤10s | Battery Weight: | 1.12±0.05kg |
Cycle Life (25±2: | ≥2500 Cycles | Charging Temperature: | 0~55℃ |
Discharging Temperature: | -20~55℃ | Size:: | L 148.2 X W26.5 X H129 |
High Light: | 3.2V Grade A lithium Battery,2500 Cycles Lifepo4 50ah Cell,lithium ion battery used in cars |

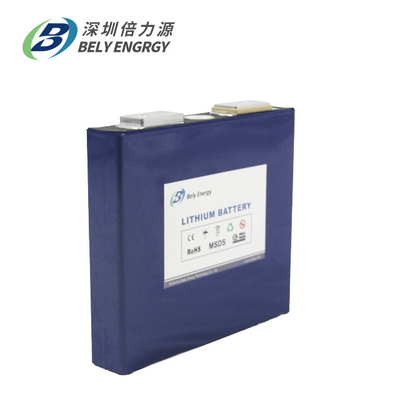

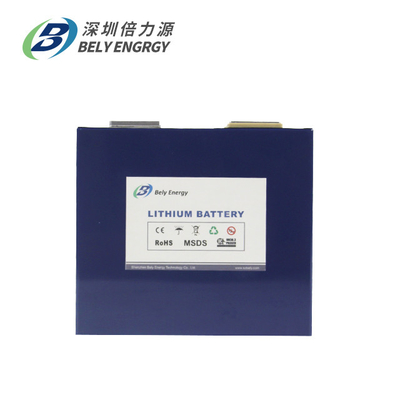

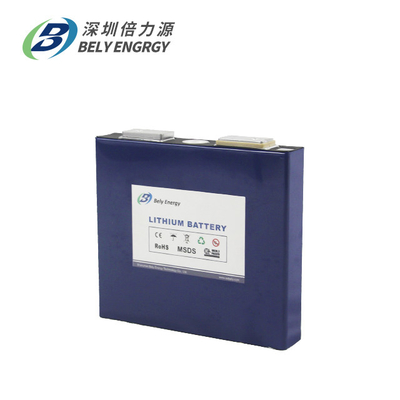

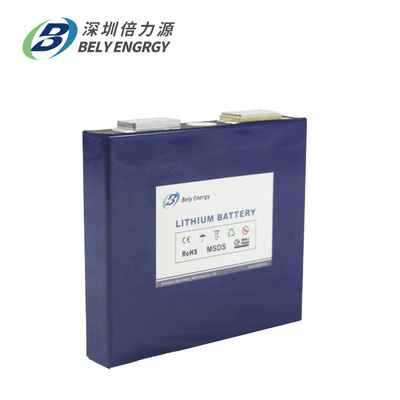

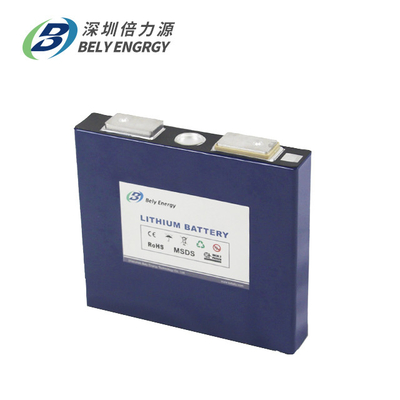

Automotive Grade A Rechargeable LiFePo4 Battery 3.2V 50Ah Prismatic Cell
1. Scope of application
This Specification specifes the technical parameters, test conditions and methods, electrical performance, shipping status, packaging, storage and transportation of LFP26148129-50Ah lithium battery produced by Shenzhen Bely Energy Technology Co., Ltd.
2. Explanation
Product material: Lithium iron phosphate battery
3. Technical parameters (only for new batteries)
4. Dimensions
5. Test Conditions
5.1 If there is no special requirement, the test conditions of the products in this specification are temperature: 25±2℃,humidity: 15%~90% RH, atmospheric pressure: 86~106KPa.
5.2 The ammeter and voltmeter shall have an accuracy of not less than grade 0.5 respectively.
5.3 The slide caliper shall meet with JIS B7507 standard (slide caliper) and have a scale of 0.01mm.
5.4 The impedance meter shall be operated at 1KHz.
6. Shipping and transporation
Batteries should be packed and transported in a state of charge below 40%. They should not be subjected to severe mechanical impact, exposure, rain and inversion during tranportation. They should be suitable for ordinary transportation vehicles such as cars, trains, ships and aircraft. During loading and unloading, it should be handled gently to prevent falling, rolling and heavy pressure.
